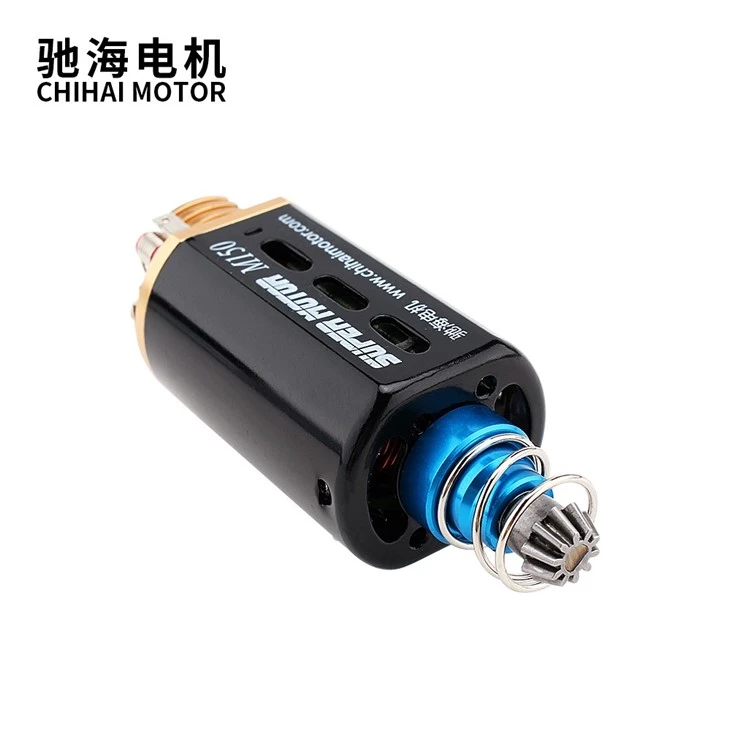

480 Nruab Nrab Ceev Siab Torque Ncej Tsav
Product Description
| Yam khoom | CHF-480WA HIGH Torque Tsav |
| Qhov tshwm sim | Plhaub xim / CNC Aluminium Alloy Cover |
| Cov khoom siv hlau nplaum | N35 Nd-Fe-b hlau nplaum |
| DC 11.1 V | 31 000 rpm |
| hnyav | Txog 150 g |
High torque lub cev muaj zog yog lub cev muaj zog heev thiab tseem ceeb, nrog lub zog siab, kev ua haujlwm zoo thiab kev ntseeg siab, siv dav hauv ntau yam khoom siv thiab tshuab. Nws tuaj yeem tsis tsuas yog muab kev kub ceev, siab-torque tsav quab yuam, tab sis kuj tswj kev ua haujlwm ruaj khov hauv qhov chaw ua haujlwm huab cua. Siv dav hauv metallurgy, mining, tshuaj lom neeg kev lag luam, ntawv, kev txuag dej thiab lwm yam haujlwm.
Piv rau lwm cov qauv ntawm lub cev muaj zog, lub siab torque motors muaj cov hauv qab no zoo:
1. Lub zog loj: lub cev muaj zog loj tuaj yeem muab lub zog loj, tuaj yeem ua tau raws li qhov xav tau ntawm ntau yam khoom siv.
2. Kev txuag hluav taws xob: Lub tshuab hluav taws xob loj loj tau txais kev tswj hwm thev naus laus zis thiab kev tsim lub cev muaj zog, uas tuaj yeem txo kev siv hluav taws xob thiab txuag nqi.
3. Kev ntseeg siab: Cov qauv ntawm lub cev muaj zog loj yog qhov ruaj khov, ruaj khov, nrog lub neej ntev thiab kev ntseeg siab.
4. Kev tswj tau yooj yim: lub cev muaj zog loj tuaj yeem ua tiav qhov ceev ceev thiab tswj lub zog, uas tuaj yeem tswj tau yooj yim raws li cov txheej txheem sib txawv.
peculiarity:

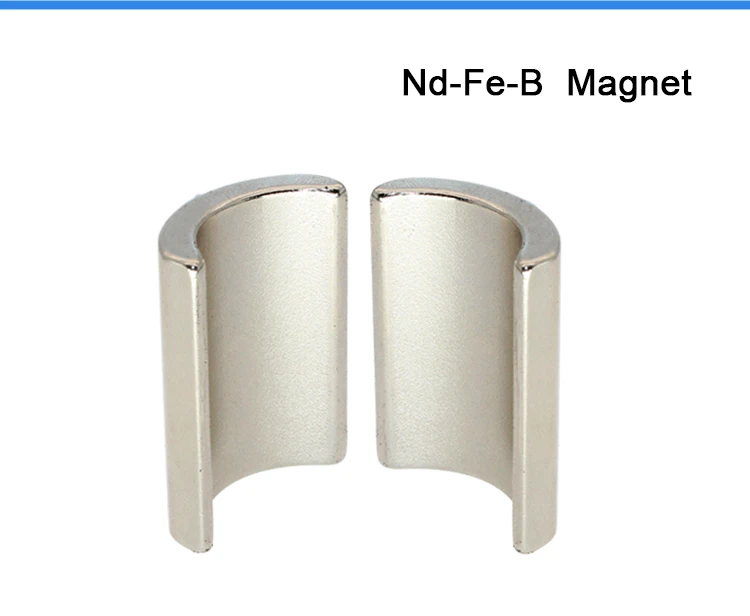

1, N35H Neodymium Magnet

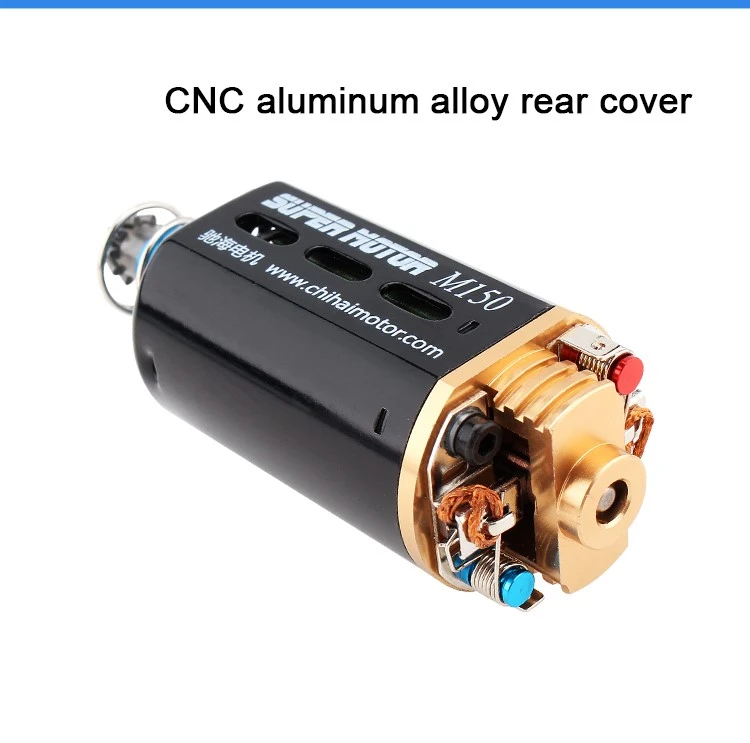

2, PPS tshav kub-resistant rov qab cover

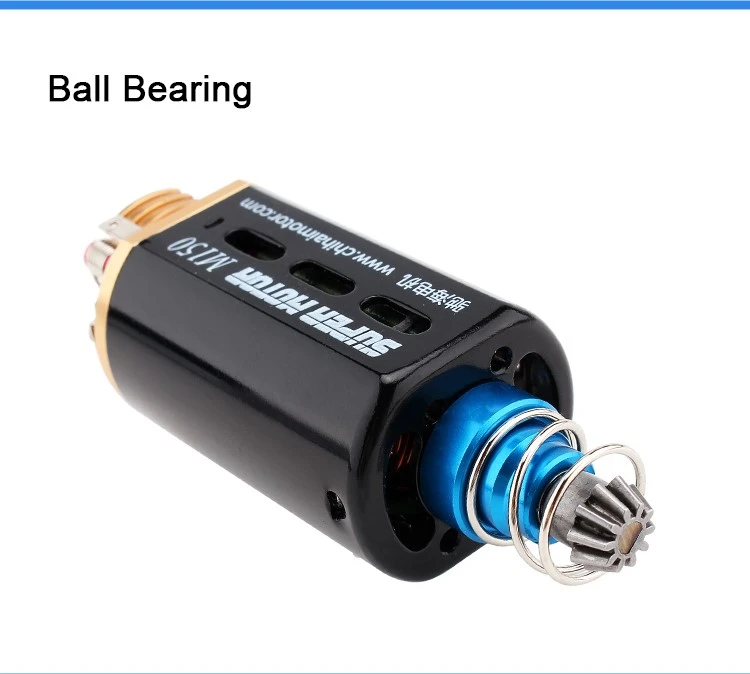

3, pob bearing tsim

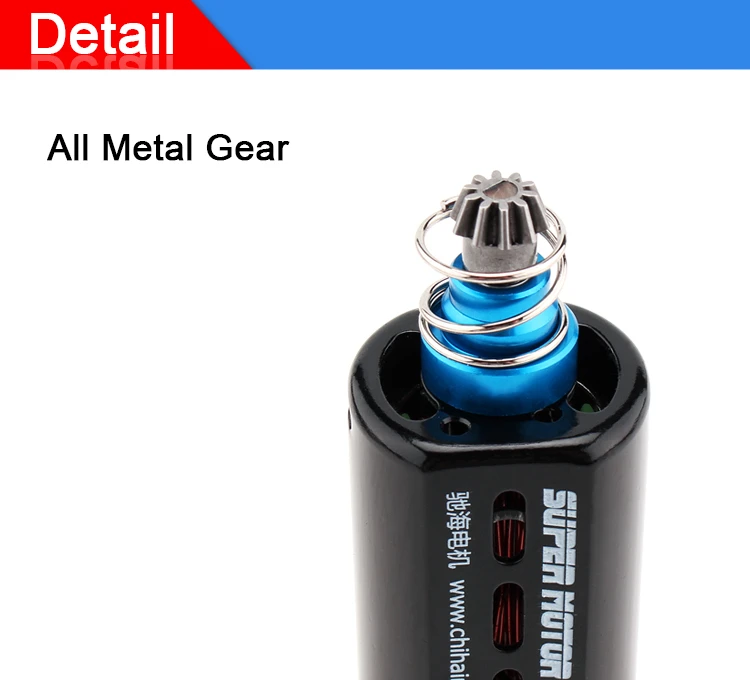

4, MIM steel pinion iav
5, High heat dissipation xim rooj plaub
6, Kev ua haujlwm siab hnav-resistant carbon txhuam
7, Armature Dynamic Ntsuas
8, Txhawb hluav taws xob tswj nti
Cov duab ntxaws

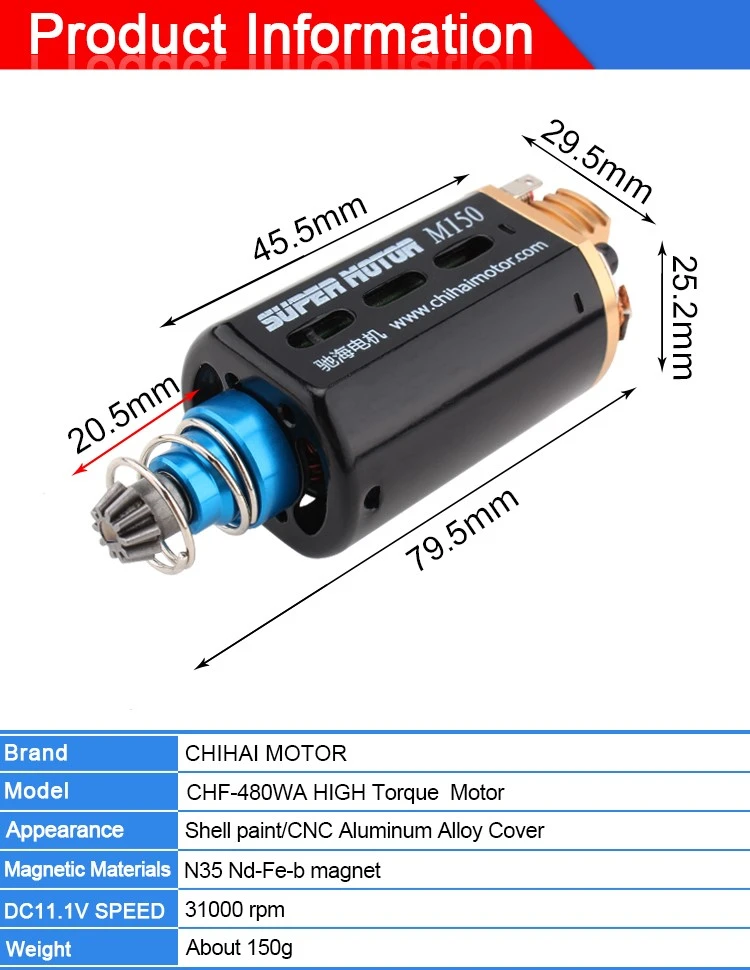

Khoom & specifications
| Qauv: CHF-480WA HIGH Torque Tsav Nruab Nrab axis |
| Qhov hluav taws xob: DC 11.1V |
| PERFORMENCE | NTAWM STALL EXTRAPOLATION | ||
| Tsis muaj load ceev | Tsis muaj load tam sim no | lub zog | tam sim no |
| 31 000 rpm | 2.8 A | 5 134.3g | 167.371 A |
NTAWM MAXIMUM EFFICIENCY
| Ceev | Tam sim no | Torque | Output Powe | Kev ua tau zoo |
| 26700 rpm ib | 20.903 A | 5 64,8g | 154.660 W | 66.66 % |
NTAWM MAXIMUM OUTPUT
| Ceev | Tam sim no | Torque | Output Powe | Kev ua tau zoo |
| 15000 rpm | 85.086 A | 2 567.1g | 394.945 W | 41.82 % |
Packing & Delivery
PACKAGE:
Standard export thawv packing.
LUB SIJ HAWM:
3-20 hnub tom qab lees paub qhov kev txiav txim, hnub nthuav dav yuav tsum tau txiav txim siab raws li
ntau lawm lub caij thiab txiav txim kom muaj nuj nqis.
CEEB TOOM:
Yog xav tau cov ntaub ntawv kev lis kev cai tshwj xeeb, thov hu rau peb ua ntej kom paub meej.
Cim npe nrov: 480 nruab nrab ceev siab torque ncej tsav, Tuam Tshoj, manufacturers, hoobkas, customized, lag luam wholesale, bulk, Tshuag
