CHIHAI: Koj tus kws tshaj lij Micro DC Tsav Tsav Chaw Tsim Tshuaj!

Cov khoom dav

Shenzhen Chihai Tsav Co., Ltd., nrhiav tau nyob rau hauv 2002, yog ib tugkev tsim khoom ntawm micro dc motors thiab dc txo lub cev muaj zog. Peb lub lag luam pib nrog micro lub cev muaj zog, tom qab ntawd tsim ntau lub zog ntawm DC deceleration motor.

Pab neeg tshaj lij

Peb cov neeg koom tes muaj kev paub ntau xyoo thiab yog cov kws tshaj lij hauv lawv cov haujlwm. Peb muaj ntau tshaj 210 tus neeg ua haujlwm txawj thiab 26 tus kws tshaj lij engineers.

24H Online Service

Cov kev xav tau ntawm peb cov neeg siv khoom ib txwm yog peb qhov tseem ceeb tshaj plaws. Peb ua tib zoo mloog lawv cov kev txhawj xeeb thiab ua haujlwm sib koom tes los nrhiav kev daws teeb meem.

Tus nqi sib tw

Peb muab cov nqi sib tw ntawm txhua yam ntawm peb cov khoom, thiab peb ua haujlwm nrog peb cov neeg siv khoom los tsim cov peev nyiaj uas ua tau raws li lawv cov kev xav tau.

Tsev 1234567 Rau sab kawg

Micro DC Tsav Tsav yog dab tsi?





Lub micro DC tsav lub cev muaj zog yog ib hom lub cev muaj zog uas hloov hluav taws xob rau hauv cov tshuab hluav taws xob siv hluav taws xob ncaj qha (DC) ua lub zog. Micro DC tsav lub cev muaj zog muaj stator thiab rotor.

Turntable Rotation Gear Motor CHW-9L370

Nta ntawm Micro DC Tsav Tsav





Ua haujlwm siab

Micro DC tsav lub cev muaj zog tuaj yeem hloov hluav taws xob rau hauv lub tshuab hluav taws xob nrog kev poob qis, uas txhais tau tias lawv tuaj yeem khiav tau ntev dua nrog kev siv hluav taws xob tsawg.

Tsawg suab nrov

Micro DC tsav lub cev muaj zog ua haujlwm ntsiag to, uas yog qhov zoo rau cov ntawv thov uas xav tau cov suab nrov qis, xws li cov khoom siv kho mob, cov khoom ua si, thiab cov khoom siv hauv tsev.

Variable Speed

Micro DC tsav lub cev muaj zog tuaj yeem kho lawv qhov nrawm raws li cov khoom siv hluav taws xob, uas tso cai rau kev tswj hwm thiab yoog raws nyob rau ntau qhov xwm txheej.

Compact Size

Micro DC tsav motors yog lub teeb yuag thiab me me, uas ua rau lawv yooj yim rau nruab thiab haum rau hauv qhov chaw nruj. Lawv kuj tuaj yeem ua ke nrog lwm cov khoom siv, xws li lub zog, sensors, thiab encoders, los tsim cov txheej txheem nyuaj.

Ntev Lifespan

Micro DC tsav lub cev muaj zog yog ruaj khov thiab txhim khu kev qha, uas txhais tau tias lawv tuaj yeem tiv taus ib puag ncig hnyav thiab siv ntau zaus. Lawv kuj muaj cov nqi kho mob tsawg thiab xav tau tsawg dua qhov hloov pauv.

Ntau hom Micro DC Tsav Tsav Tsav

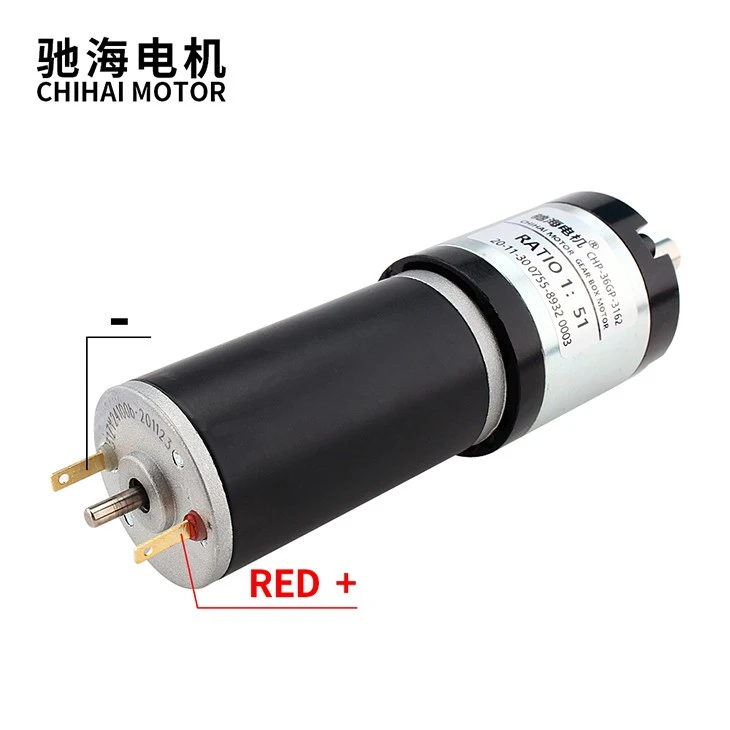

Tubular DC Carbon Brush Planetary Gear Motor

Brushed Dc Tsav

Hom lub cev muaj zog no muaj cov hlau nplaum ruaj khov raws li lub stator thiab lub kauj ntawm cov hlau raws li lub rotor. Lub kauj yog txuas nrog lub commutator, uas hloov cov kev taw qhia tam sim no raws li lub rotor rotates. Lub commutator txhuam tawm tsam ob qhov sib txuas hlau, hu ua txhuam, uas muab cov khoom tam sim no rau lub kauj. Brushed DC motors yog qhov yooj yim, pheej yig, thiab tswj tau yooj yim, tab sis lawv muaj qhov tsis zoo xws li kev sib txhuam, suab nrov, hnav, thiab sparks.

Brushless DC Tsav

Hom lub cev muaj zog no muaj cov hlau nplaum ruaj khov raws li lub rotor thiab ib co coil ntawm cov hlau raws li stator. Lub kauj yog tswj los ntawm lub tshuab hluav taws xob, uas hloov cov kev taw qhia tam sim no raws li txoj hauj lwm ntawm lub rotor. Brushless DC motors muaj txiaj ntsig zoo, nyob ntsiag to, txhim khu kev qha, thiab ruaj khov dua li brushed DC motors, tab sis lawv muaj ntau dua thiab kim.

Coreless DC Tsav

Hom lub cev muaj zog no muaj ib lub coil ntawm cov hlau raws li lub rotor thiab cov hlau nplaum ruaj khov raws li stator. Lub kauj yog qhov txhab ntawm lub tog raj kheej hlau nyias, hu ua cov tub ntxhais, uas txo cov inertia thiab tsis kam ntawm lub rotor. Coreless DC motors yog lub teeb yuag, teb, thiab meej, tab sis lawv muaj lub zog qis thiab siv zog siab.

Stepper Tsav

Hom lub cev muaj zog no muaj cov hlau nplaum ruaj khov lossis ib lub kauj ntawm cov hlau raws li lub rotor thiab ob peb coils ntawm cov hlau raws li stator. Cov coils yog energized nyob rau hauv ib theem zuj zus, uas ua rau lub rotor txav nyob rau hauv discrete kauj ruam. Stepper motors yog ib qho yooj yim los tswj tsis muaj kev tawm tswv yim sensors, tab sis lawv muaj tsawg ceev thiab raug.

Servo Tsav

Hom lub cev muaj zog no yog kev sib xyaw ua ke ntawm DC lub cev muaj zog thiab cov lus tawm tswv yim, xws li potentiometer lossis encoder. Lub sensor ntsuas txoj hauj lwm los yog ceev ntawm lub rotor thiab xa ib lub teeb liab mus rau ib tug maub los, uas kho cov tam sim no rau lub cev muaj zog raws li. Servo motors yog qhov tseeb thiab muaj zog heev, tab sis lawv yuav tsum muaj kev tswj hwm txoj haujlwm.

Daim ntawv thov ntawm Micro DC Tsav Tsav
Robotics

Cov neeg hlau feem ntau xav tau cov motors me me, hnyav, thiab muaj zog ua haujlwm xws li locomotion, manipulation, sensing, thiab kev sib txuas lus. Micro DC tsav motors tuaj yeem muab cov peev txheej no nrog kev siv hluav taws xob tsawg thiab tsim hluav taws xob. Piv txwv li, micro DC tsav lub cev muaj zog tuaj yeem siv los ua lub zog rau lub log lossis ob txhais ceg ntawm tus neeg hlau, cov pob qij txha ntawm caj npab, lossis lub koob yees duab thiab sensors ntawm tus neeg hlau lub taub hau. Los ntawm kev siv micro DC tsav lub cev muaj zog, cov neeg hlau tuaj yeem ua tiav nrawm, du, thiab muaj tseeb txav hauv ntau qhov chaw.

Drones

Drones yog lub dav hlau tsis muaj neeg tsav tsheb uas tuaj yeem siv rau ntau lub hom phiaj, xws li kev yees duab, saib xyuas, xa khoom, kev lom zem, thiab lwm yam. Drones yuav tsum muaj lub cev muaj zog ua haujlwm siab uas tuaj yeem muab lub zog txaus thiab lub zog los nqa thiab ua haujlwm lub drone hauv huab cua. Micro DC tsav motors tuaj yeem ua tau raws li cov kev xav tau no nrog lawv cov kev kub ceev thiab lub zog ceev. Piv txwv li, micro DC tsav lub cev muaj zog tuaj yeem siv los txhawb lub zog ntawm lub tshuab drone, uas txiav txim siab qhov nrawm, kev taw qhia, thiab qhov siab ntawm lub drone. Los ntawm kev siv micro DC tsav lub cev muaj zog, drones tuaj yeem ya sai, ntev dua, thiab ruaj khov dua.

Cov cuab yeej kho mob

Cov cuab yeej kho mob yog cov cuab yeej lossis cov tshuab uas tuaj yeem siv los kuaj xyuas, kho, lossis saib xyuas ntau yam mob. Cov cuab yeej kho mob feem ntau yuav tsum muaj lub cev muaj zog thiab txhim khu kev qha uas tuaj yeem ua haujlwm nyab xeeb thiab ua haujlwm zoo hauv tib neeg lub cev lossis nyob ze nws. Micro DC tsav lub cev muaj zog tuaj yeem muab cov khoom zoo no nrog lawv cov kev vibration qis, tsis tshua muaj hluav taws xob cuam tshuam, thiab ua haujlwm siab. Piv txwv li, micro DC tsav lub cev muaj zog tuaj yeem siv los ua lub zog ntawm lub twj tso kua mis lossis lub valve ntawm lub tshuab xa tshuaj, cov hniav lossis rab koob ntawm cov cuab yeej phais, lossis cov hlau nplaum lossis cov coils ntawm cov khoom siv duab. Los ntawm kev siv micro DC tsav lub cev muaj zog, cov cuab yeej kho mob tuaj yeem txhim kho qhov zoo thiab kev nyab xeeb ntawm kev kho mob.



DC Tsav Tsav Cheebtsam

Cov khoom tseem ceeb ntawm micro DC tsav lub cev muaj zog yog:

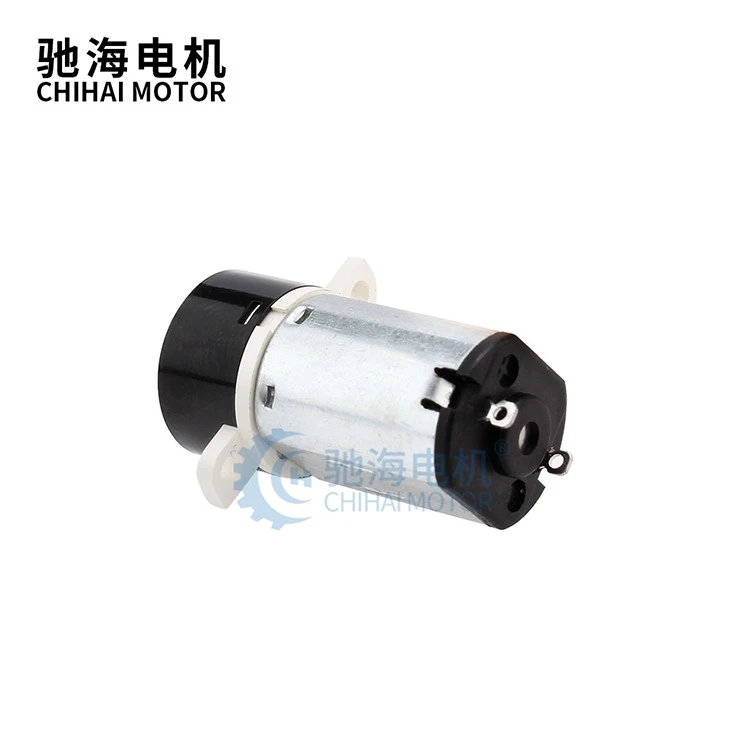

Dc Plastic Planetary Reduction Gear Motor

Tus Stator

Qhov no yog qhov chaw nres tsheb ntawm lub cev muaj zog uas muaj cov hlau nplaum ruaj khov lossis cov hlau nplaum uas tsim cov hlau nplaum.

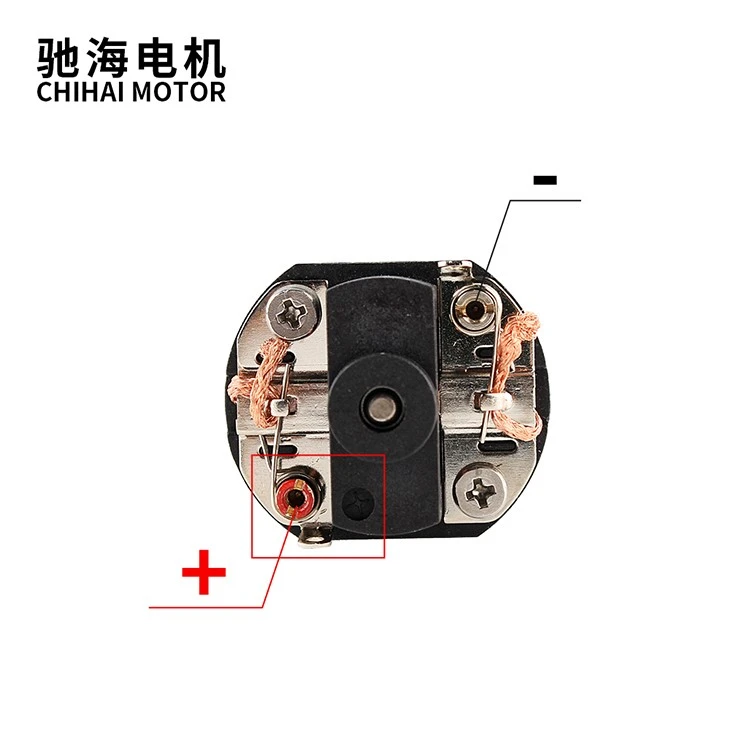

N35H NdFeb Magnetic Steel High Torque Motor

Lub Rotor

Qhov no yog qhov rotating ib feem ntawm lub cev muaj zog uas muaj cov armature windings uas cuam tshuam nrog lub magnetic teb thiab tsim torque.

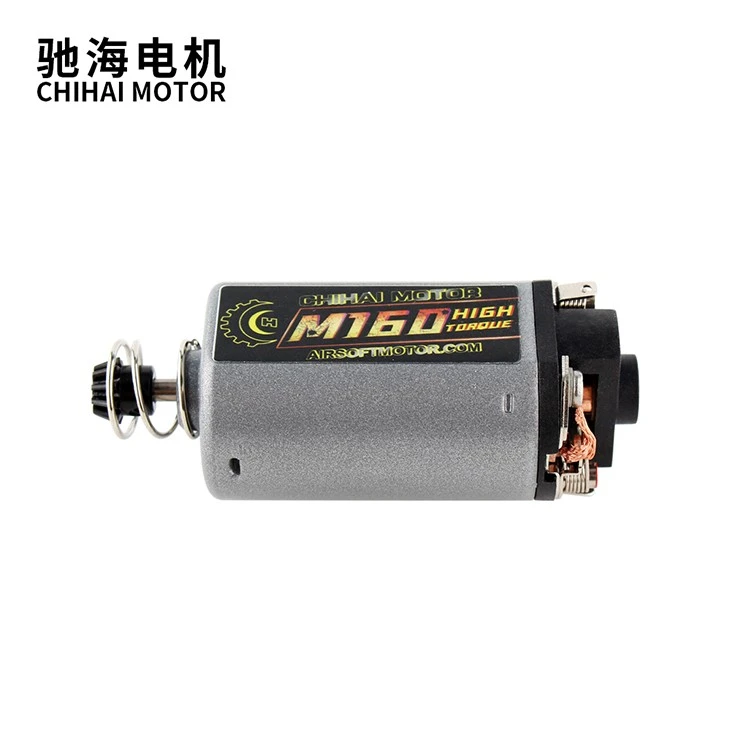

N35H NdFeb Magnetic Steel High Torque Motor

Tus Commutator

Qhov no yog ib qho cuab yeej uas hloov cov kev taw qhia ntawm tam sim no nyob rau hauv armature windings raws li lub rotor rotates, kom ntseeg tau tias lub torque yog ib txwm nyob rau hauv tib txoj kev.

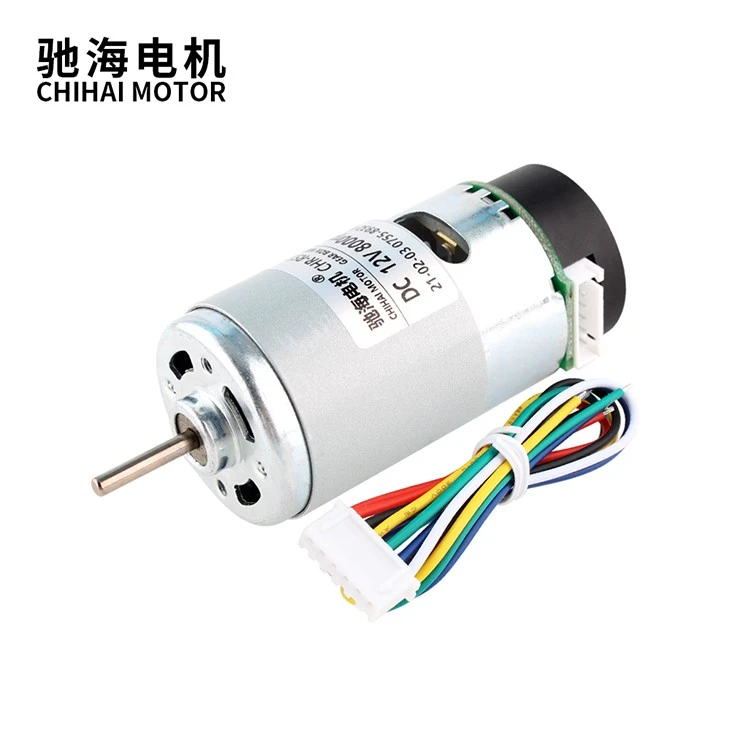

Permanent Magnet DC Motor Hall Encoder Speed Measuring Motor

Cov Txhuam

Cov no yog cov ntaub ntawv conductive uas ua rau kev sib cuag nrog lub commutator thiab muab hluav taws xob fais fab rau lub armature windings.

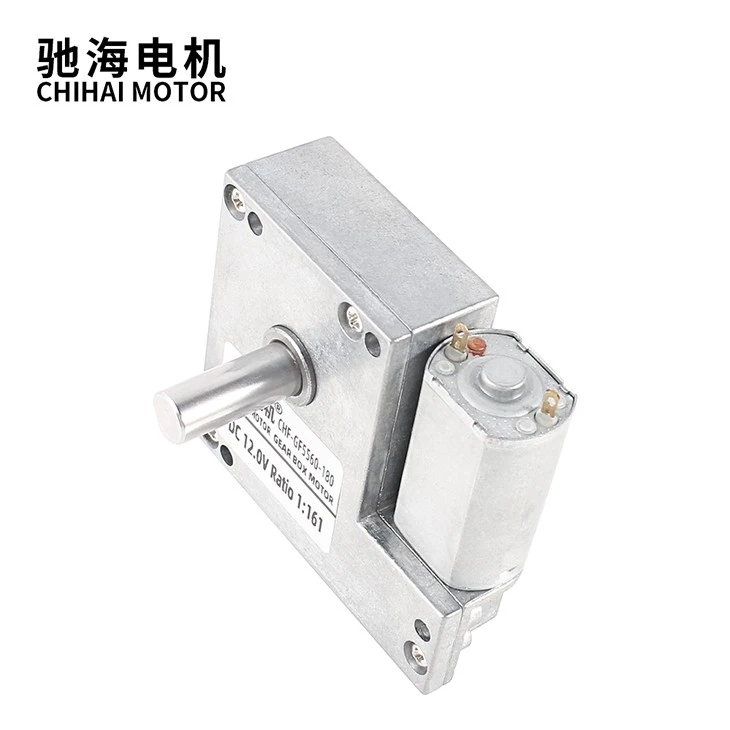

Dc Gear Motor With Self-locking Function

Cov Bearings

Cov no yog cov cuab yeej siv tshuab uas txhawb nqa lub rotor thiab txo kev sib txhuam thiab hnav.

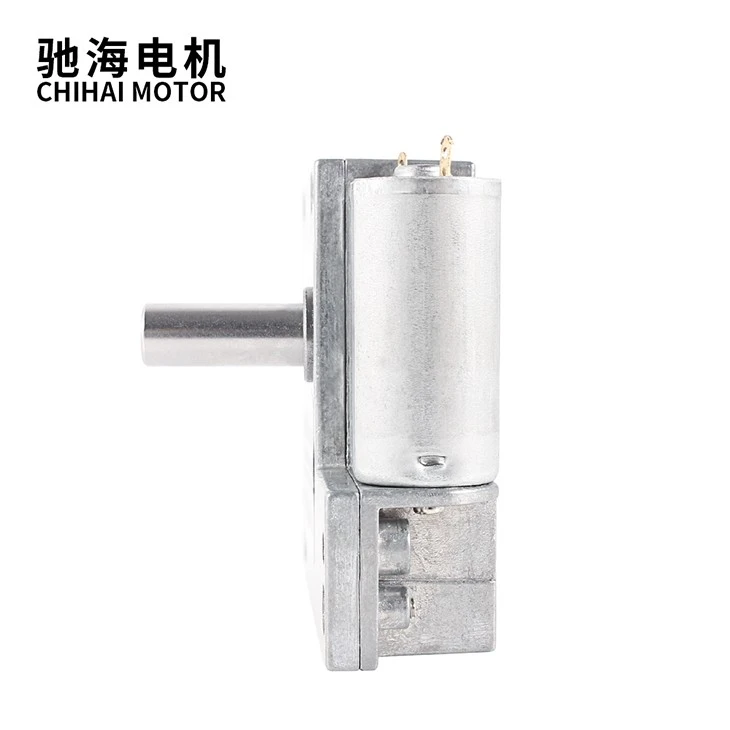

Dc Gear Motor With Self-locking Function

Tus ncej

Qhov no yog cov hlau pas nrig uas txuas lub rotor rau cov khoom thauj lossis cov khoom siv uas yuav tsum tau tsav los ntawm lub cev muaj zog.


Yuav ua li cas xaiv Micro DC Tsav Tsav?




Qhov loj thiab qhov hnyav ntawm lub cev muaj zog

Koj xav tau lub cev muaj zog uas haum rau koj qhov project thiab tsis ntxiv ntau ntau lossis hnyav. Koj tuaj yeem pom micro DC tsav lub cev muaj zog hauv ntau qhov ntau thiab tsawg, los ntawm tsawg dua 10 mm mus rau ntau dua 30 mm inch, thiab los ntawm tsawg dua 5 g mus rau ntau dua 50 g hauv qhov hnyav.


Qhov Voltage thiab Tam sim no ntsuas ntawm lub cev muaj zog

Koj xav tau lub cev muaj zog uas phim koj cov khoom siv hluav taws xob thiab tsis kos tam sim no ntau dhau. Koj tuaj yeem pom micro DC tsav lub cev muaj zog uas ua haujlwm ntawm qhov hluav taws xob xws li 1.5 V txog 12 V, thiab cov tam sim no los ntawm ob peb mA mus txog 1 A.


Lub Torque thiab ceev ntawm lub cev muaj zog

Koj xav tau lub cev muaj zog uas xa cov quab yuam thiab nrawm rau koj qhov project. Koj tuaj yeem pom micro DC tsav lub cev muaj zog uas muaj lub zog los ntawm tsawg dua 1 mNm mus rau ntau dua 10 mNm, thiab nrawm ntawm tsawg dua 100 rpm mus rau ntau dua 10,000 rpm.


Hom thiab Configuration ntawm lub cev muaj zog

Koj xav tau lub cev muaj zog uas haum rau koj qhov project tsim thiab kev ua haujlwm. Koj tuaj yeem pom micro DC tsav lub cev muaj zog hauv ntau hom, xws li txhuam los yog tsis txhuam, coreless lossis hlau core, geared lossis ncaj tsav. Koj tuaj yeem pom cov motors nrog cov kev teeb tsa sib txawv, xws li ncej lossis hub, puag ncig lossis tiaj tus, ib leeg lossis ob.


Tham nrog cov kws tshaj lij lossis cov neeg muab khoom siv

Txhawm rau xaiv qhov zoo tshaj plaws micro DC tsav lub cev muaj zog rau koj qhov project, koj yuav tsum sib piv cov ntsiab lus ntawm cov qauv sib txawv thiab ntsuas lawv cov kev ua tau zoo thiab kev ua haujlwm. Koj tuaj yeem sab laj nrog cov kws tshaj lij lossis peb. Peb tuaj yeem pab koj nrhiav qhov kev xaiv tsim nyog tshaj plaws.



Peb Cov Ntawv Pov Thawj thiab Airsoft Tsav

productcate-800-572

Chihai Motor

Chihai Motor

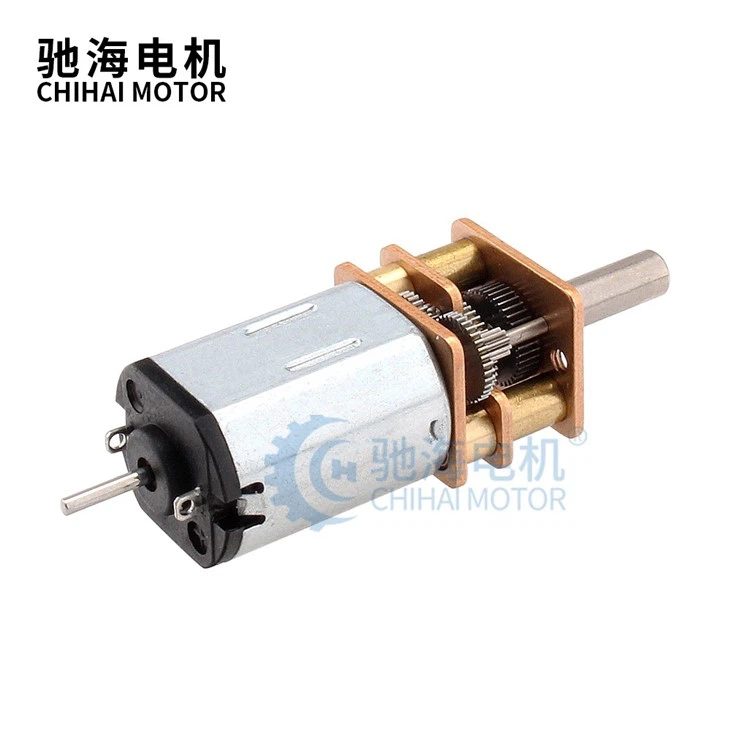

productcate-730-730

Chihai Motor

Cov lus nug nquag nug txog Micro DC Tsav Tsav

Q: Micro DC motors yog dab tsi thiab lawv ua haujlwm li cas?

A: Micro DC lub cev muaj zog yog cov cuab yeej hloov hluav taws xob rau hauv lub zog siv tshuab. Nws muaj ib tug stator thiab rotor. Lub stator yog qhov chaw nyob ruaj khov thiab feem ntau muaj cov txheej txheem ntawm electromagnetic coils, hu ua armature, uas ua rau muaj qhov sib nqus. Lub rotor yog qhov sib hloov thiab feem ntau yog tsim los ntawm ib lossis ntau dua cov hlau nplaum ruaj khov, uas tau tsav los ntawm lub zog hluav taws xob los tsim kev sib hloov.

Thaum cov hluav taws xob ncaj qha tam sim no siv rau lub tshuab hluav taws xob, cov coils tsim ib qho chaw sib nqus, ua rau muaj kev sib hloov.

Q: Cov iav me me yog dab tsi thiab lawv ua haujlwm li cas?

A: Lub tswv yim ntawm iav motors rub kev tshoov siab los ntawm patent los ntawm German tus tsim qauv Albert Obermoser, uas tau tsim lub Vorlegemotor (iav lub cev muaj zog) hauv xyoo 1928. Cov kws tshaj lij tau pib kawm ntxiv txog kev sib koom ua ke cov iav kis tau tus mob nrog DC motors kom nce torque thiab ua tiav ntau dua. tswj ceev.
Lub DC iav lub cev muaj zog yog cov cuab yeej siv tshuab tsim los ntawm micro DC lub cev muaj zog thiab lub zog iav uas suav nrog ntau lub zog. Lub hom phiaj ntawm lub iav system ua ke nrog micro DC lub cev muaj zog yog txhawm rau txo qhov ceev ntawm DC lub cev muaj zog thaum nce nws lub zog, ua kom nws ua haujlwm ntawm qhov xav tau ceev. Los ntawm kev ntxiv ib lub gearbox rau lub cev muaj zog thiab ua kom tus qauv tsim tau yooj yim, nws yooj yim rau kev hloov kho rau cov kev xav tau tshwj xeeb ntawm cov neeg siv khoom, txhim kho cov versatility ntawm lub iav tsav.
Nyob ntawm tus naj npawb thiab hom iav, qhov sib txawv ntawm qhov tso zis nrawm thiab lub zog tuaj yeem ua tiav. Tsawg zog ua rau muaj kev nrawm dua thiab qis dua torque, thiab rov ua dua. Nws tuaj yeem ntsia tau rau hauv txhua txoj haujlwm.

Q: Micro DC lub cev muaj zog yog dab tsi?

A: Lub micro DC iav lub cev muaj zog yog lub tshuab hluav taws xob micro uas ua haujlwm nyob rau hauv daim ntawv ntawm DC. Nws yog kev sib xyaw ntawm DC lub cev muaj zog thiab lub reducer. Nws yog dav siv nyob rau hauv cov ntawv thov kev lag luam vim tias nws cov yam ntxwv ntawm lub cev txiav txim siab tias nws tuaj yeem siv rau hauv kev lag luam sib txawv.

Q: Dab tsi yog micro motors siv rau?

A: Micro motors yog me me, lub teeb yuag, thiab yooj yim siv lub cev muaj zog tsim los rau kev siv hluav taws xob tsawg thiab cuam tshuam hluav taws xob tsawg. Cov kev ua tau zoo no, ntawm lwm tus, ua rau lawv zoo rau kev siv hauv cov chaw compact thiab complex nrog txwv kev siv hluav taws xob, xws li cov khoom siv hluav taws xob thiab hluav taws xob siab heev.

Q: Lub tshuab me me ua haujlwm li cas?

A: Cov khoom ua si hluav taws xob ua haujlwm li cas? Lub tshuab hluav taws xob me me muaj ob lub hlau nplaum me me, lub tshuab hluav taws xob, ob lub txhuam, peb tus ncej, thiab lub tshuab hluav taws xob ua los ntawm winding hlau nyob ib ncig ntawm ib daim hlau. Nws ua haujlwm ib yam li qhov loj dua, tab sis ntawm qhov me me.

Q: Dab tsi siv lub tshuab me me?

A: Cov tshuab me me no muaj ntau yam kev siv xws li hauv cov khoom siv suab paj nruag, khoom siv kho mob, khoom siv sib txuas lus, ntsuas ntsuas, thiab cov neeg hlau. Rau cov neeg hlau, cov servomotors uas siv cov tshuab me me, lub zog muaj zog feem ntau yog siv los tsav cov pob qij txha.

Q: Dab tsi yog qhov siab torque motors siv rau?

A: High torque low RPM motors tshwj xeeb yog tsim los txav cov khoom hnyav thiab cov khoom siv ntawm tus nqi qeeb. Los ntawm kev muab lub zog los yog lub zog ntau ntawm qhov qeeb qeeb, nws tuaj yeem txav tau cov khoom loj lossis hnyav, xws li lub qhov rooj, nqa, rooj vag, thiab lwm yam khoom siv hauv kev tswj hwm ntau dua.

Q: Qhov twg DC lub cev muaj zog feem ntau siv?

A: Shunt thiab cais zoo siab DC motors. Feem ntau txhua lub hwj huam mov, PC, UPS, lub tsheb tsav thiab cov khoom siv sib xyaw siv PM DC motors me me (sib cais zoo siab) rau cov kiv cua. Nyob rau theem qis zog no cais cov tshuab DC zoo siab heev.

Q: Dab tsi yog qhov torque ntawm micromotor?

A: Max ceev (ko taw tswj) 50, 000 rpm. Torque 7.8N.cm Voltage 240v tso zis 230w.

Q: Cov neeg hlau puas siv AC lossis DC motors?

A: DC motors yog qhov zoo tagnrho rau kev siv neeg hlau uas xav tau lub cev muaj zog nrog lub zog siab ntawm qis RPMs. Lawv yog cov tshwj xeeb tshaj yog pab tau rau tej yaam num uas yuav tsum tau meej positioning los yog txav.

Q: Ntau npaum li cas lub zog DC lub cev muaj zog tuaj yeem tsim tau?

A: 12v DC lub cev muaj zog nrog lub peev xwm siab tshaj 1.5A tuaj yeem tsim 18W ntawm lub zog. 12v DC lub cev muaj zog nrog lub peev xwm siab tshaj 3A tuaj yeem tsim 36W ntawm lub zog.

Q: Ntev npaum li cas lub DC lub cev muaj zog ua haujlwm tsis tu ncua?

A: Lub sijhawm ua haujlwm tsis tu ncua ntawm DC lub cev muaj zog nyob ntawm ntau yam xws li nws qhov loj me, lub zog ntsuas, tsim, kub, thauj khoom, thiab cua txias. Feem ntau, feem ntau DC motors tuaj yeem khiav tsis tu ncua rau ob peb teev mus rau ntau txhiab teev, nyob ntawm lawv cov kev qhia tshwj xeeb thiab kev ua haujlwm.

Q: Cov txiaj ntsig ntawm micro motors yog dab tsi?

A: 1) Kev ua haujlwm ntsiag to. Lawv yog tsim los kom ntsiag to dua lwm cov motors.
2) Superior kev ua tau zoo. Txawm hais tias lawv qhov loj me me, lawv muab kev ua haujlwm zoo zog, kev ntseeg tau ntev, thiab kev tswj xyuas meej, nrog rau muab kev vibration-alerts kom cov kws tshaj lij kev lag luam pom zoo ntawm cov khoom siv hauv lub sijhawm. Tsis tas li ntawd, lawv cov inertia qis thiab inductance winding ua rau muaj kev ua tau zoo heev, thaum lawv qhov kev pheej hmoo qis ntawm cogging ua rau kev ua tau zoo dua thiab muaj kev vam meej.
3) Kev xaiv lub zog ntau dua. Kev siv qis tam sim no thiab pib qhov hluav taws xob ntawm peb lub tshuab hluav taws xob micro ua rau lawv haum rau siv hauv cov khoom siv roj teeb.

Peb yog cov kws tshaj lij micro DC tsav lub cev muaj zog hauv Suav teb rau ntau tshaj 15 xyoo, tshwj xeeb hauv kev muab cov khoom lag luam zoo. Peb sov siab txais tos koj rau cov lag luam wholesale bulk micro DC tsav lub cev muaj zog hauv Tshuag ntawm no los ntawm peb lub hoobkas.
