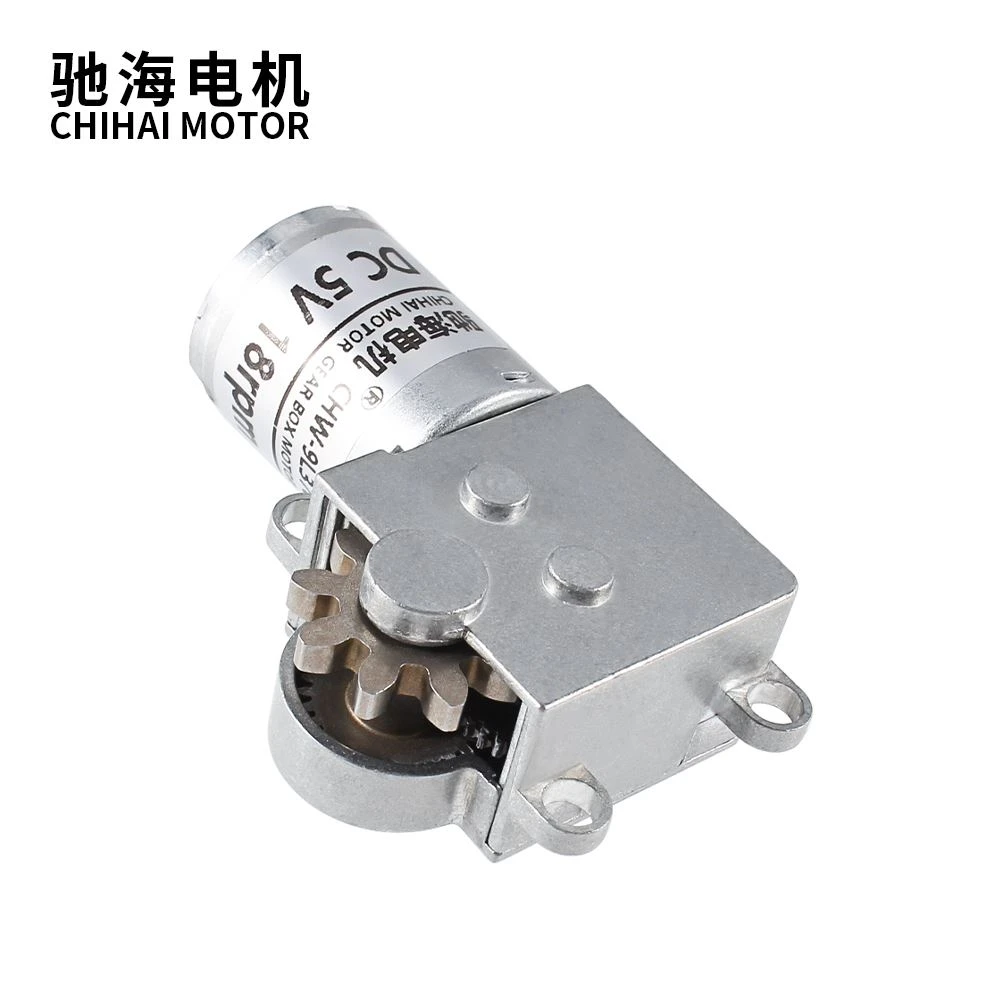

Turntable Rotation Iav Tsav CHW-9L370
Product Description
| Hom | CHIHAI MOTOR |
| Yam khoom | CHW-9L370 Turntable rotary geared motors |
| Qhov ntev | 61.5mm x 31.3 hli |
| Qhov hluav taws xob | Pa DC5 0V (3.0-24 0V tuaj yeem hloov kho) |
| Qhov hnyav | Txog 125 g |
| Daim ntawv thov |
Kev txawj ntse tus kheej ntsuas ob lub log tsheb, ntse taug qab tsheb, ntse khoom siv hauv tsev Robot, lub koob yees duab crane, hluav taws xob daim kab xev txiav tshuab |
Turntable teb geared lub cev muaj zog yog ib hom ntawm lub cev muaj zog feem ntau siv hauv cov tshuab thiab cov khoom siv automation, feem ntau yog siv los decelerate lub rotary ceev ntawm lub turntable. Iav kis tau tus mob los yog siv txoj hlua kis tau tus mob yog siv los ua kom tiav qhov deceleration los ntawm kev kho qhov sib kis.
Nyob rau hauv automated ntau lawm kab thiab kev siv neeg hlau, turntable teb geared motors feem ntau yog siv los tig workpieces los yog khoom. Piv txwv li, turntable teb geared motors yog siv nyob rau hauv kev lag luam ntau lawm los hloov cov khoom los ntawm ib txoj hauj lwm mus rau lwm tus, yog li ua kom automated los ua ke kab ntau lawm thiab txhim kho ntau lawm efficiency thiab zoo.
Cov qauv ntawm turntable rotary geared lub cev muaj zog yog qhov yooj yim thiab yooj yim rau kev khiav lag luam, thiab nws muaj qhov zoo ntawm qhov me me, lub teeb yuag, tsis tshua muaj suab nrov thiab lub neej ntev. Kev siv lub tshuab xa hluav taws xob qeeb qeeb ua rau lub cev muaj zog txav tau yooj yim thiab tuaj yeem txo qhov kev sib txhuam thiab kev siv hluav taws xob zoo, ua rau kev txuag hluav taws xob thiab kev tiv thaiv ib puag ncig.
Worm iav kis qauv:
tooj liab cab nrog POM cov khoom siv cab cab; Txo cov suab nrov zoo; Txhim kho kev puas tsuaj;
Lub neej ua haujlwm ntev Muaj peev xwm ua tau zoo; muaj zog tiv thaiv tus kheej muaj peev xwm;
Lub suab nrov tsawg dua 45dB raws li cov qauv ntsuas:
Output loj module iav:
Cov zis theem tau txais 9-cov hniav loj module iav tso zis los txhim kho cov kabmob muaj peev xwm, hnav tsis kam, ncua kev pabcuam lub neej,
thiab xyuas kom cov load-bearing tso zis nyob rau hauv siab torque.
Ntshiab tooj liab hlau winding:
Nqaim qhov siab torque rotor tag nrho kev sib npaug kho
Cov duab ntxaws
Khoom & specifications
| qauv:CHW-9L370 Turntable Rotation Gear motor |
| piv | 1:131 |
| hluav taws xob | DC 5 0V |
| Tsis-load ceev | 18rpm ua |
| Tsis muaj load tam sim no | Tsawg dua lossis sib npaug li 50 mA |
| Rated torque | 8 50g cm |
| Rated ceev | 14rpm ua |
| ntsuas tam sim no | Tsawg dua lossis sib npaug li 150mA |
| Thaiv torque | Ntau tshaj los yog sib npaug li 3.5 kg.cm |
| Txuas tam sim no | Tsawg dua los yog sib npaug rau 0.5A |
