Tsis tshua muaj suab nrov 22 hli Planetary Iav Brushless 2418 Tsav
Ncej Dianeter: 4mm, tuab 3.5mm
Voltage: DC 10-16V
Product Description
Yam khoom: | CHP -22GP-BL2418 Brushless DC planetary iav txo lub cev muaj zog |

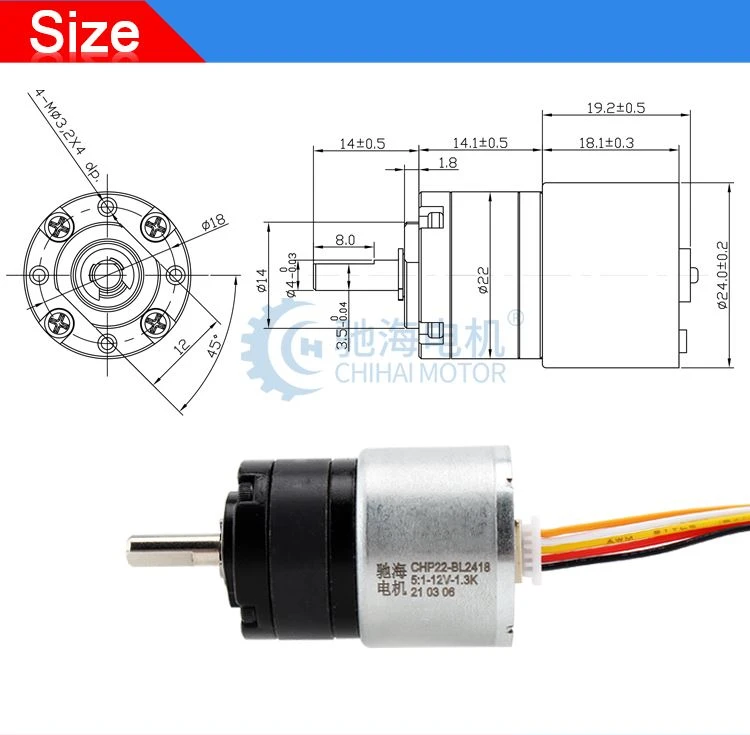

Txoj kab uas hla: | ∮22mm |
Ncej ntev: | 14mm ib |
Ncej Dianeter: | 4mm, tuab 3.5mm |
Voltage: | DC 10-16V |
Qhov hnyav: | cav 61g |
Daim ntawv thov: | Lub cev muaj zog rau 7d ultrasonic scalpel |
1.22mm planetary iav tsav Built-in tsav tsheb,
2.Hall sensor, Hall-effect sensor,
3.Inbuilt maub los nrog rau kev cuam tshuam nrog sensor, Controller nrog nrog sensor,

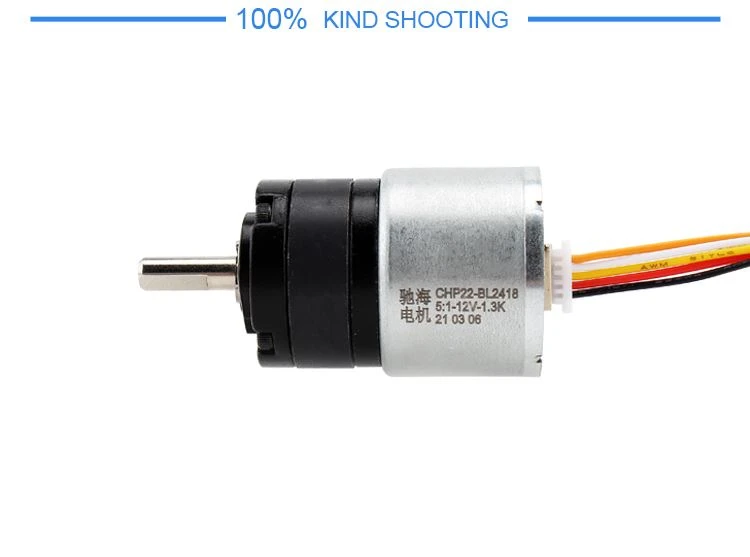

Cov duab ntxaws
Khoom & specifications
Qauv:CHP -22GP-BL2418 | |
Voltage: 12VTxhawb customization | |
RATIO | 5:1 |
specifications | 5:1-12V-1.3K |
Tsis muaj load tam sim no (mA) | Tsawg dua lossis sib npaug li 150 mA |
Tsis muaj load ceev (rpm) | 1300 ± 10% RPM |
Rated torque (Kg.cm) | 0.13 kg.cm |
Rated ceev (rpm) | 1050 ± 10% RPM |
Rated tam sim no (A) | Tsawg dua los yog sib npaug rau 0.6A |
Khoom muag & zaub
Packing & Delivery
Ntim:
Standard export thawv packing.
LUB SIJ HAWM:
3-20 hnub tom qab lees paub qhov kev txiav txim, hnub nthuav dav yuav tsum tau txiav txim siab raws li
ntau lawm lub caij thiab txiav txim kom muaj nuj nqis.
CEEB TOOM:
Yog xav tau cov ntaub ntawv tshwj xeeb kev lis kev cai, thov hu rau peb ua ntej kom paub meej.
FAQ
Q: 1.Dab tsi ntawm cov motors koj tuaj yeem muab tau?
A: Txog tam sim no, Peb tsuas yog muab lub tshuab hluav taws xob micro thiab cov dc deceleration lub cev muaj zog, suav nrog cov hniav ncaj ncaj deceleration lub cev muaj zog, lub cev muaj zog deceleration, worm deceleration motor.Tam sim no, peb lub tuam txhab tsom rau kev tsim ntau hom motors nrog voltage ntawm 1VDC thiab 30VDC thiab lub cev muaj zog. txoj kab uas hla ntawm 8 mus rau 51mm.
q:2 ua. Koj puas tuaj yeem xa kuv daim ntawv teev nqi?
A: Rau tag nrho peb cov motors, lawv yog customized raws li cov kev cai sib txawv xws li lub neej, suab nrov, voltage, thiab ncej thiab lwm yam. Tus nqi kuj txawv raws li txhua xyoo kom muaj nuj nqis. Yog li ntawd nws yog ib qho nyuaj heev rau peb muab ib daim ntawv teev nqi. Yog tias koj tuaj yeem qhia koj cov ncauj lus kom ntxaws thiab ntau npaum li cas txhua xyoo, peb yuav pom tias peb tuaj yeem muab tau dab tsi.
q:3 ua. Lub sij hawm coj mus kuaj yog dab tsi?
A: Rau kev txiav txim, lub sijhawm ua tus qauv yog 3-25 hnub thiab lub sijhawm no tuaj yeem luv dua lossis ntev dua raws li cov qauv sib txawv, lub sijhawm thiab ntau.
q:4 ua. Puas yog koj tuaj yeem tsim cov motors tshiab yog tias peb tuaj yeem muab cov nqi siv?
A:Yog lawm. Thov ua siab zoo qhia cov ncauj lus kom ntxaws xws li kev ua tau zoo, qhov loj me, txhua xyoo kom muaj nuj nqis, lub hom phiaj tus nqi thiab lwm yam. Tom qab ntawd peb yuav ua peb qhov kev ntsuam xyuas los saib seb peb puas tuaj yeem npaj lossis ua tsis tau.
Q: 5.Koj puas tuaj yeem xa kuv kuaj dawb?
Yog lawm, peb kuj tuaj yeem xa koj cov nqi kuaj rov qab thaum koj xaj khoom.
Cim npe nrov: Tsis tshua muaj suab nrov 22 hli planetary iav brushless 2418 lub cev muaj zog, Tuam Tshoj, manufacturers, hoobkas, customized, lag luam wholesale, bulk, Tshuag
