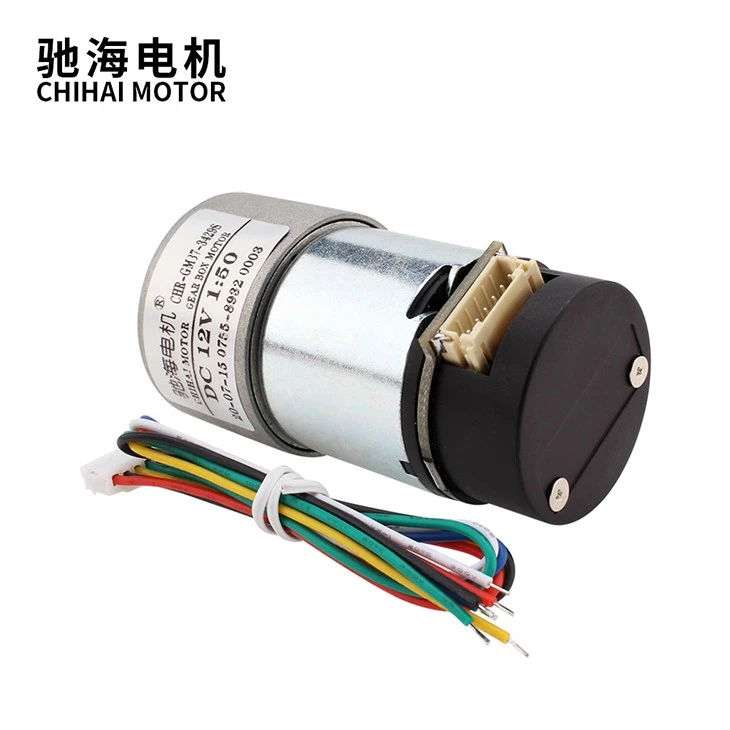

Nrog encoder carbon txhuam DC Tsav nrog siab torque
Cov Khoom Qhia:
| Hom | Chihai Tsav |
| Tus qauv | Ch-gm {{{37-3429 Abhl cov pa roj txhuam DC tsav nrog siab torque |
| Qhov dav | Φ37mm |
| Nce Ntev | 21mm D 12mm |
| Fai fab hov ntau | DC 6-12 v (lwm voltages tuaj yeem kho tau hauv batches) |
| Qho hnyav | Txog 200g |
| Xov Xwm Hluav Taws Xob | PH2.0 (wiring txheem) |
| Encoder Specifications | AB DUAL THEEM Encoder 11 Kab Ntsiab Lus Teeb Hluav Taws Xob Voltage 3.3V lossis 5.0V |
| Daim ntawv thov |
Ntse tus kheej-ntsuas lub tsheb loj dual, ntse training tsheb, cov khoom siv ntse, Neeg hlau, lub koob yees duab rocker caj npab, hluav taws xob cutter, thiab lwm yam |
Txhua Tus Hlau Iav:
Kev me nyuam yaus txhua hom cov khoom siv iav tas nrho, cov hnav ntau dua-tiv taus, ntev nws txoj kev pabcuam lub neej
Ntshuam Ntshuam Hlau Winding:
Lub rotor pare admts admts, tooj liab pab pawg, tsis kam ua me me, muaj zog hluav taws xob conductivity, loj torque
Ab Biphase Hall Encoder:
AB DUAL THEEM EXTRALAINAL STUMSICAL Hall Paroder Phauj mem tes 11PPRX iav txo cov piv txwv
Cov duab ntxaws ntxaws:
Cov Khoom Muag Kev Ua Si:
| Qauv: Ch-gm {37-3429 s abhl carbon txhuam DC Tsav DC Tsav Nrog Siab Torque | |||||||||
| Voltage: DC 12.0V Max Power 11W | |||||||||
| Txo cov sib npaug | 1:6.3 | 1:10 | 1:18.8 | 1:30 | 1:50 | 1:90 | 1:150 | 1:270 | 1:450 |
| Tsis muaj-thauj khoom tam sim no (ma) | Tsawg dua los yog sib npaug rau 300 | Tsawg dua los yog sib npaug rau 300 | Tsawg dua los yog sib npaug rau 300 | Tsawg dua los yog sib npaug rau 300 | Tsawg dua los yog sib npaug rau 300 | Tsawg dua los yog sib npaug rau 300 | Tsawg dua los yog sib npaug rau 300 | Tsawg dua los yog sib npaug rau 300 | Tsawg dua los yog sib npaug rau 300 |
| Tsis Muaj-Thauj Ceev (Rpm) | 1550 | 1000 | 530 | 330 | 200 | 110 | 65 | 36 | 22 |
| Rated Torque (kg . cm) | 1.0 | 1.6 | 3.0 | 4.8 | 8.0 | 14.0 | 24.0 | 30.0 | 30.0 |
| Rated Torque (n . m) | 0.1 | 0.16 | 0.3 | 0.48 | 0.8 | 1.4 | 2.4 | 3 | 3 |
| Rated ceev (RPM) | 950 | 600 | 320 | 200 | 120 | 65 | 40 | 27 | 16 |
| Rated tam sim no (a) | Tsawg dua los yog sib npaug rau 2.3 | Tsawg dua los yog sib npaug rau 2.3 | Tsawg dua los yog sib npaug rau 2.3 | Tsawg dua los yog sib npaug rau 2.3 | Tsawg dua los yog sib npaug rau 2.3 | Tsawg dua los yog sib npaug rau 2.3 | Tsawg dua los yog sib npaug rau 2.1 | Tsawg dua los yog sib npaug rau 1.9 | Tsawg dua los yog sib npaug rau 1.7 |
| Stall torque (kg . cm) | Ntau dua los yog sib npaug rau 2.5 | Ntau dua los yog sib npaug rau 4.0 | Ntau dua los yog sib npaug ntawm 7.5 | Ntau dua los yog sib npaug rau 12 | Ntau dua los yog sib npaug rau 20 | Tsis Tau Tshaj 30 .} 0kg . cm (3.0nm) | |||
| Cov khoom muag tam sim no (a) | Tsawg dua los yog sib npaug ntawm 7.0 | Tsawg dua los yog sib npaug ntawm 7.0 | Tsawg dua los yog sib npaug ntawm 7.0 | Tsawg dua los yog sib npaug ntawm 7.0 | Tsawg dua los yog sib npaug ntawm 7.0 | Tsawg dua los yog sib npaug ntawm 7.0 | Tsawg dua los yog sib npaug ntawm 7.0 | Tsawg dua los yog sib npaug ntawm 7.0 | Tsawg dua los yog sib npaug ntawm 7.0 |
| Teeb teeb (11xratio) | 69 | 110 | 207 | 330 | 550 | 990 | 1650 | 2970 | 4950 |
| Reducer ntev l (hli) | 19.0 | 19.0 | 21.5 | 21.5 | 24.0 | 24.0 | 26.5 | 26.5 | 29.0 |
| Voltage: DC 6.0V Max Power 2.6W | |||||||||
| Txo cov sib npaug | 1:6.3 | 1:10 | 1:18.8 | 1:30 | 1:50 | 1:90 | 1:150 | 1:270 | 1:450 |
| Tsis muaj-thauj khoom tam sim no (ma) | Tsawg dua los yog sib luag rau 200 | Tsawg dua los yog sib luag rau 200 | Tsawg dua los yog sib luag rau 200 | Tsawg dua los yog sib luag rau 200 | Tsawg dua los yog sib luag rau 200 | Tsawg dua los yog sib luag rau 200 | Tsawg dua los yog sib luag rau 200 | Tsawg dua los yog sib luag rau 200 | Tsawg dua los yog sib luag rau 200 |
| Tsis Muaj-Thauj Ceev (Rpm) | 775 | 500 | 265 | 165 | 100 | 55 | 32 | 18 | 11 |
| Rated Torque (kg . cm) | 0.5 | 0.8 | 1.5 | 2.4 | 4.0 | 7.0 | 12.0 | 21.0 | 30.0 |
| Rated Torque (n . m) | 0.05 | 0.08 | 0.15 | 0.24 | 0.4 | 0.7 | 1.2 | 2.1 | 3.0 |
| Rated ceev (RPM) | 470 | 300 | 160 | 100 | 60 | 32 | 20 | 11 | 6.5 |
| Rated tam sim no (a) | Tsawg dua los yog sib npaug rau 1.4 | Tsawg dua los yog sib npaug rau 1.4 | Tsawg dua los yog sib npaug rau 1.4 | Tsawg dua los yog sib npaug rau 1.4 | Tsawg dua los yog sib npaug rau 1.4 | Tsawg dua los yog sib npaug rau 1.4 | Tsawg dua los yog sib npaug rau 1.4 | Tsawg dua los yog sib npaug rau 1.4 | Tsawg dua los yog sib npaug rau 1.4 |
| Stall torque (kg . cm) | Ntau dua los yog sib npaug rau 1.2 | Ntau dua los yog sib npaug rau 2.0 | Ntau dua los yog sib npaug rau 3.7 | Ntau dua los yog sib npaug rau 6.0 | Ntau dua los yog sib npaug rau 10 | Ntau dua los yog sib npaug rau 18 | Tsis Tau Tshaj 30 .} 0kg . cm (3.0nm) | ||
| Cov khoom muag tam sim no (a) | Tsawg dua los yog sib npaug rau 3.5 | Tsawg dua los yog sib npaug rau 3.5 | Tsawg dua los yog sib npaug rau 3.5 | Tsawg dua los yog sib npaug rau 3.5 | Tsawg dua los yog sib npaug rau 3.5 | Tsawg dua los yog sib npaug rau 3.5 | Tsawg dua los yog sib npaug rau 3.5 | Tsawg dua los yog sib npaug rau 3.5 | Tsawg dua los yog sib npaug rau 3.5 |
