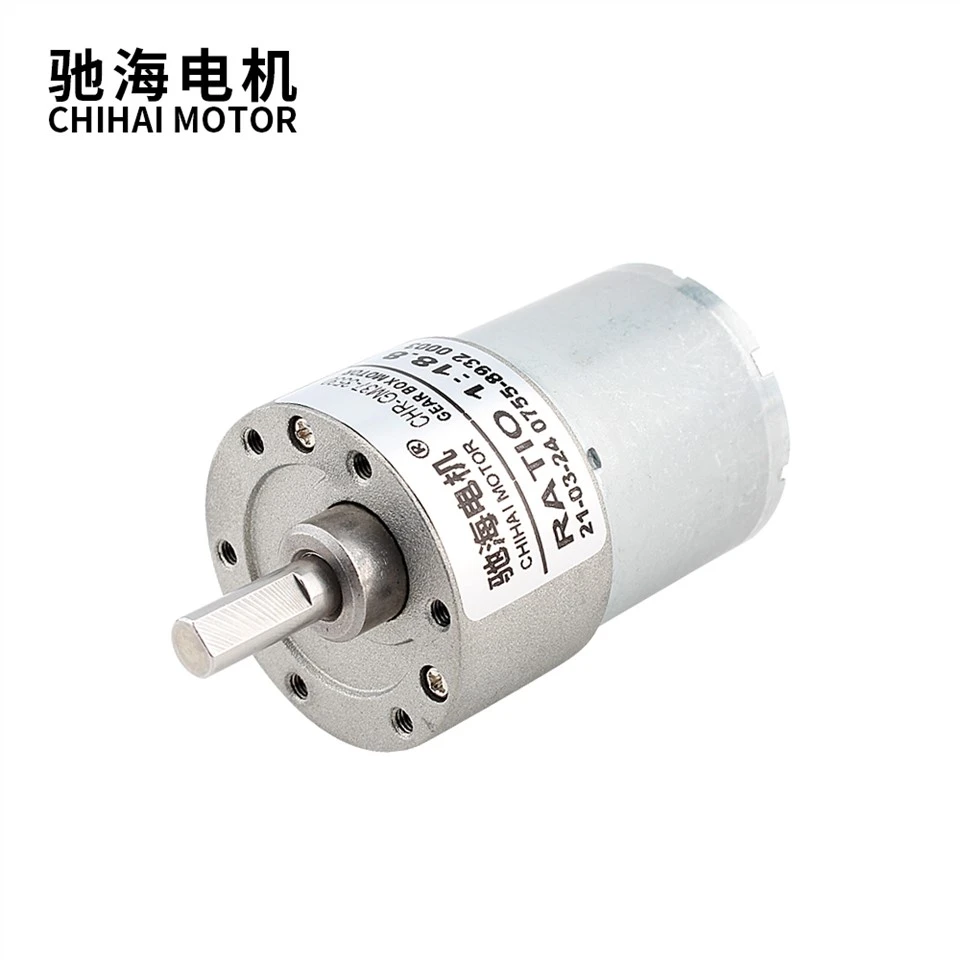

37 hli 3530 Electric Dc Iav Tsav
Voltage: DC 12 -24V
Qhov hnyav: Txog 170g
37 hli 3530 hluav taws xob dc iav tsav
Khoom Piav Qhia
Yam khoom: | CHR-GM37-3530 DC iav lub cev muaj zog |
Ncej ntev ： | 21mm D 12mm |
Ncej Dianeter: | Φ 6 hli D |
Voltage: | DC 12 -24V |
Nyhav ： | Txog 170g |
Daim ntawv thov: | Kev txawj ntse nws tus kheej ntsuas ob lub log muaj log tsheb, txawj ntse nrhiav tsheb, cov khoom vaj khoom tsev ntseRobot, koob yees duab rocker caj npab, hluav taws xob ntawv tej tshuab, thiab lwm yam |
Cov duab ntxaws ntxaws
Khoom& cov lus qhia tshwj xeeb
Qauv: CHR-GM37-3530 Carbon txhuam dc iav tsav | |||||||||||
Voltage: DC 24.0V max zog 3.1W | |||||||||||
Cov ntawv tshwj xeeb: vim lub zog ntawm lub cev muaj zog, qhov tam sim no loj, | |||||||||||
Tus nqi txo qis | 1: 6.3 | 1: 10 | 1:18.8 | 1: 30 | 1: 50 | 1: 90 | 1: 150 | 1: 270 | 1: 450 | 1: 650 | 1: 810 |
Tsis-thauj khoom tam sim no (mA) | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 | ≤50 |
Tsis thauj khoom-nrawm (rpm) | 940 | 590 | 316 | 198 | 118 | 66 | 39 | 22 | 13 | 9 | 7 |
Lub cev muaj zog (Kg.cm) | 0.6 | 1.0 | 1.9 | 3.0 | 5.0 | 9.0 | 15.0 | 27.0 | Yuav' t tshaj | ||
Torque Rated (Nm) | 0.06 | 0.10 | 0.18 | 0.29 | 0.49 | 0.88 | 1.47 | 2.64 | |||
Nyob ceev (rpm) | 425 | 270 | 143 | 90 | 54 | 30 | 18 | 10 | 6 | 4 | 3 |
Nyob tam sim no (A) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.4 | 0.3 |
Stall tam sim no (A) | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
Reducer ntev L (hli) | 19.0 | 19.0 | 21.5 | 21.5 | 24.0 | 24.0 | 26.5 | 26.5 | 29.0 | 29.0 | 29.0 |
Voltage: DC 12.0V max zog 0.52W | |||||||||||
Tus nqi txo qis | 1: 6.3 | 1: 10 | 1:18.8 | 1: 30 | 1: 50 | 1: 90 | 1: 150 | 1: 270 | 1: 450 | 1: 650 | 1: 810 |
Tsis muaj-thauj khoom tam sim no（mA) | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 |
Tsis thauj khoom-nrawm (rpm) | 470 | 295 | 158 | 99 | 59 | 33 | 18 | 11 | 7 | 5 | 4 |
Lub cev muaj zog (Kg.cm) | 0.2 | 0.3 | 0.6 | 1.0 | 1.7 | 3.0 | 5.0 | 9.0 | 15.0 | 21.0 | 27.0 |
Torque Rated (Nm) | 0.02 | 0.03 | 0.06 | 0.10 | 0.16 | 0.29 | 0.49 | 0.88 | 1.47 | 2.12 | 2.64 |
Nyob ceev (rpm) | 255 | 162 | 86 | 54 | 32 | 18 | 10 | 6 | 4 | 3 | 2 |
Nyob tam sim no (A) | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Stall tam sim no (A) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Khoom& tso saib
Packing& Tus me nyuam
POB:
Txheem export thawv ntim khoom.
TXHUA LUB SIJ HAWM:
3-20 hnub tom qab paub tseeb txog kev txiav txim, kev qhia meej txog hnub xa khoom yuav tsum txiav txim siab raws li
lub caij ua ntau lawm thiab kev txiav txim kom muaj nuj nqis.
XAIV:
Yog tias cov ntaub ntawv tshwj xeeb kev lis kev cai tau thov, thov hu rau peb ua ntej kom paub meej.
Cov FAQ
Q: 1.Qhov twg lub cev muaj zog koj tuaj yeem muab tau?
A: Txog rau tam sim no, Peb feem ntau muab micro lub cev muaj zog thiab cov koob ntawm dc deceleration lub cev muaj zog, suav nrog ncaj ncaj deceleration lub cev muaj zog, planetary deceleration tsav, lub cev muaj zog deceleration lub cev muaj zog.Thaum tam sim no, peb lub tuam txhab tsom rua kev tsim ntau yam ntawm cov motors nrog voltage ntawm 1VDC thiab 30VDC thiab lub cev muaj zog txoj kab uas hla ntawm 8 thiab 51 hli.
Q: 2. Koj puas tuaj yeem xa kuv daim ntawv qhia nqi?
A: Rau txhua yam ntawm peb lub zog, lawv tau kho kom haum raws li qhov sib txawv raws li lub neej, suab nrov, voltage, thiab cov nqaj thiab lwm yam. Tus nqi kuj sib txawv raws li qhov ntau xyoo. Yog li nws' s yeej nyuaj rau peb los muab cov npe teev nqi. Yog tias koj tuaj yeem qhia koj cov ncauj lus kom ntxaws thiab cov khoom lag luam txhua xyoo, peb' dhau los saib qhov kev pabcuam peb tuaj yeem muab tau.
Q: 3. Dab tsi' s lub sij hawm txhuas rau kev txiav txim ib txwm?
A: Rau cov xaj, lub sijhawm txhuas lub sijhawm yog 3-25 hnub thiab lub sijhawm no tuaj yeem luv dua lossis ntev dua raws li cov qauv sib txawv, sijhawm thiab ntau.
Q: 4. Nws puas tau rau koj kom txhim kho lub zog tshiab yog tias peb tuaj yeem muab cov nqi tsim tawm?
A:Yog lawm. Thov ua siab zoo qhia cov ncauj lus kom ntxaws ntxaws xws li kev ua tau zoo, qhov loj me, cov lus qhia txhua xyoo, cov nqi phiaj.
Q: 5.Hauv koj xa tuaj rau kuv kuaj dawb?
Yog lawm, peb kuj tuaj yeem xa koj cov nqi coj mus kuaj rov qab thaum koj tso qhov kev txiav txim.
Cim npe nrov: 37 hli 3530 hluav taws xob dc iav tsav, Tuam Tshoj, tuam ntxhab, lub Hoobkas, lag luam, customized, lag luam wholesale, tej, hauv Tshuag
