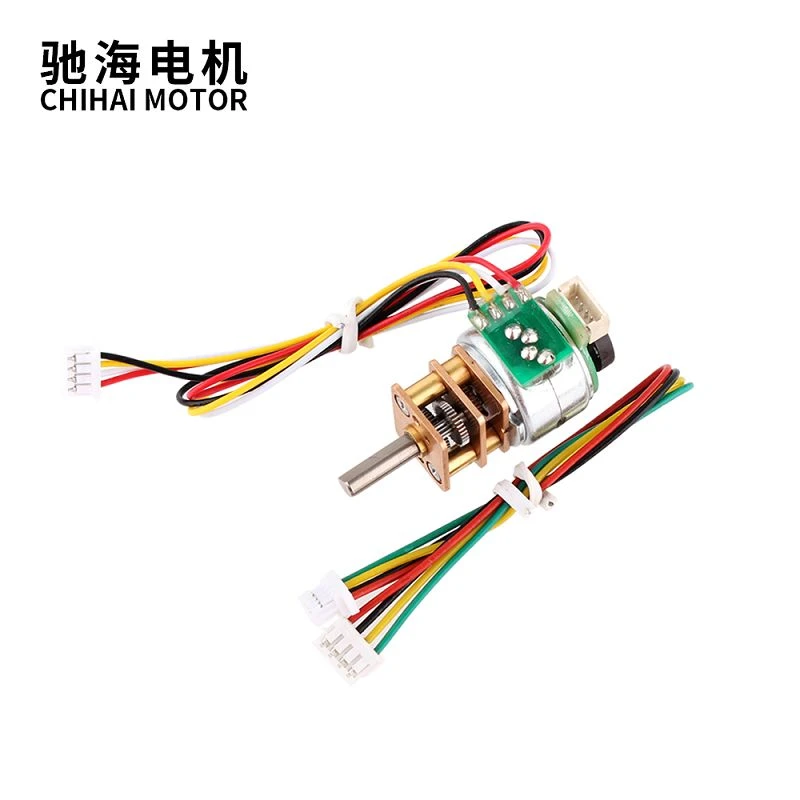

15mm 30 Ohm Tag Nrho Hlau Iav Stepper 15BY Tsav Nrog Encoder
Lub hwj chim: DC 5-12V
Lub kaum sab xis: 18 degree / 50

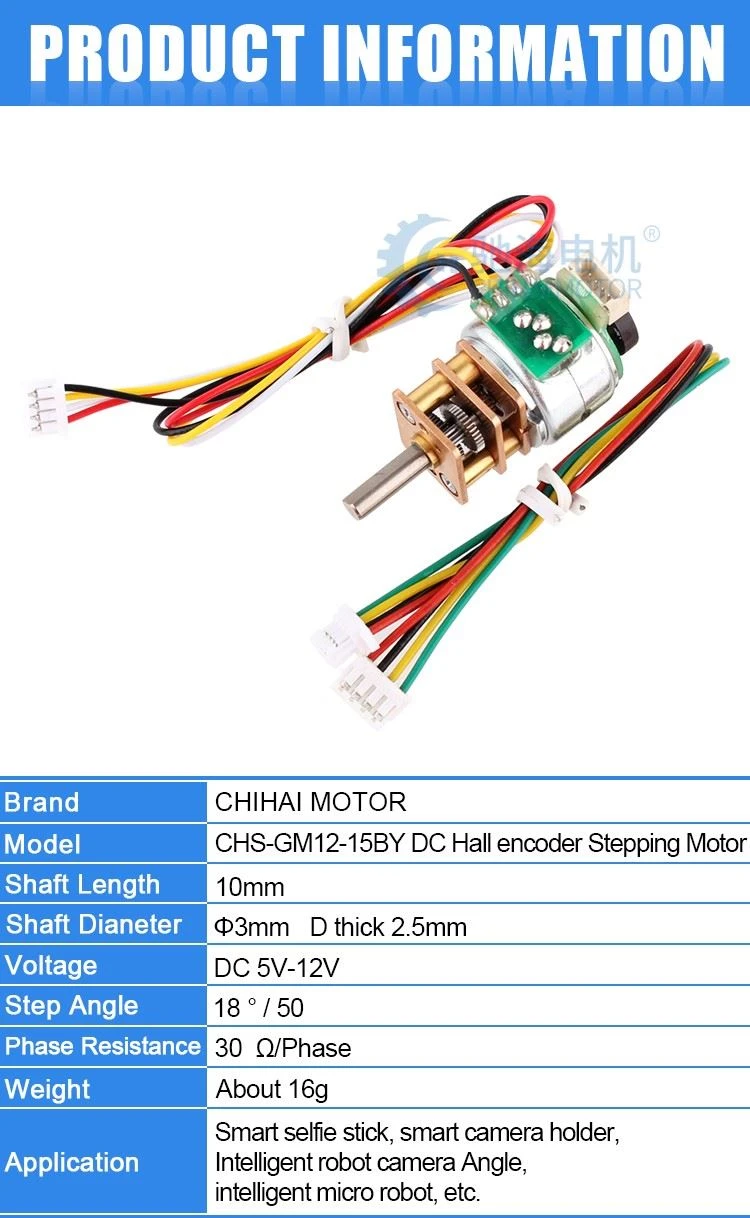

Product Description
Yam khoom: | CHS{0}}GM12-15BY DC Hall encoder Stepping Motor |
Loj: | Φ1520mm (not include the length of the axis) |
Ncej diameter: | 3mm D hom ncej |
Ncej ntev: | 10 mm |
Voltage: | DC 5-12V |
Kauj ruam kaum: | 18 degree / 50 |
Theem tsis kam: | 30 Ω/Phase |
Qhov hnyav: | Txog 16g |
daim ntawv thov: | Intelligent selfie stick, ntse lub koob yees duab tuav, ntse neeg hlau lub koob yees duab Lub kaum sab xis, ntse me me neeg hlau, thiab lwm yam |

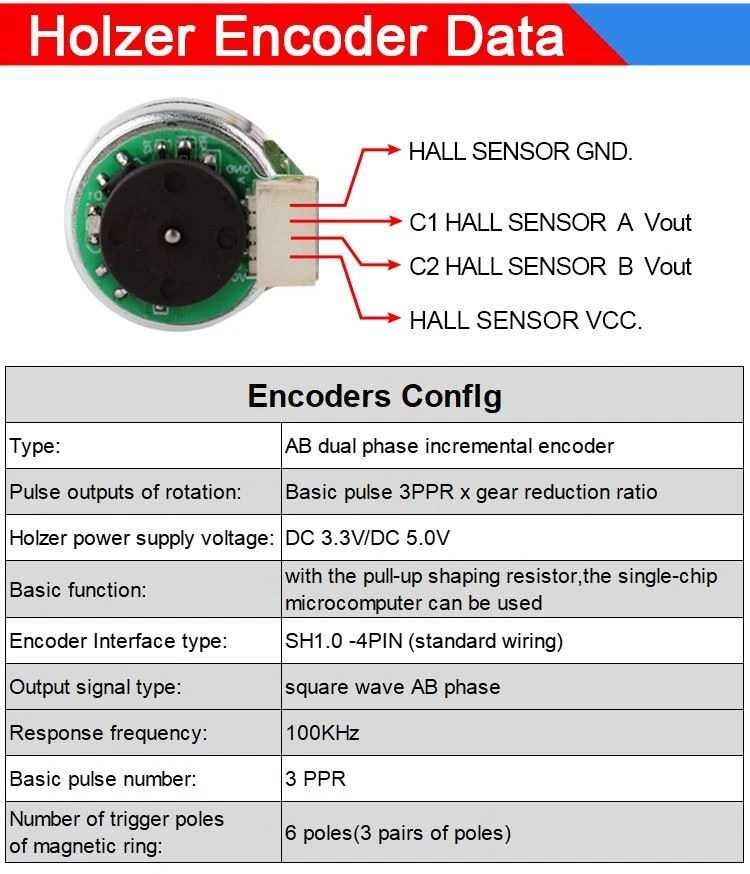

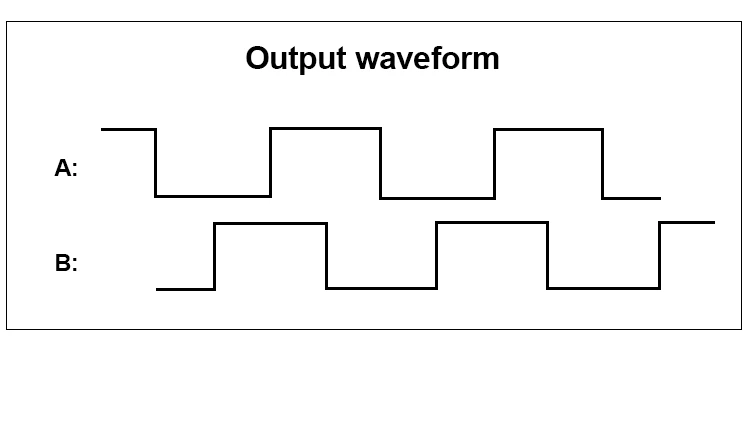

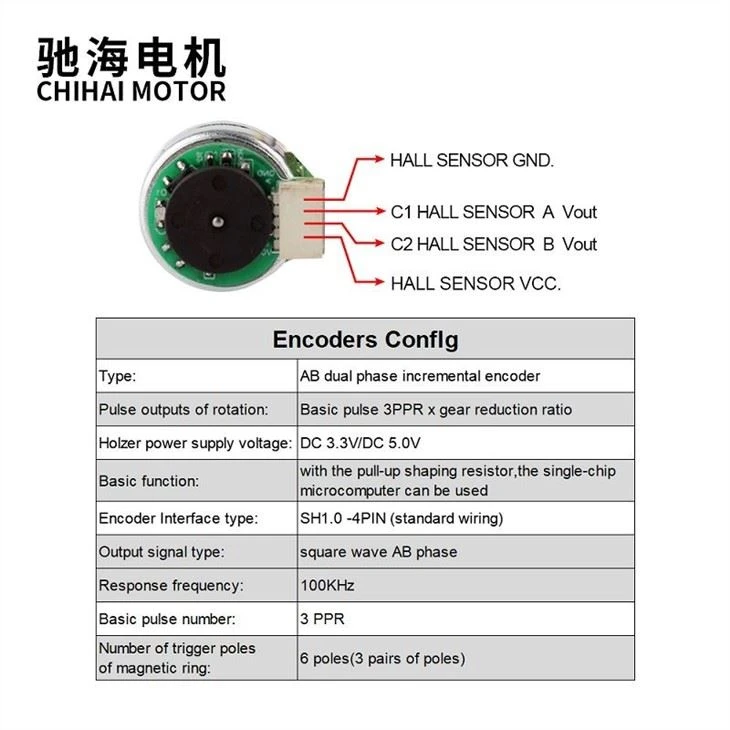

Cov duab ntxaws
Input stepper motor tsis muaj
Qauv | CHS-15BY-M3015 | ||
RATED VOLTAGE | 5 V DC (Drive IC: l6219) | TAM SIM NO PER PHASE | 160mA / Phase |
COIL RESISTANCE | 30±7 percent ohm / PHASE | NO.OF PHASES | 2 PHEV |
QHOV TSEEB | 18 degree / STEP | EXCITATION METOD | 2 HUAB TAIS TXOJ CAI |
DRIVE MODE | BIPOLAR DRIVE | COIL INDUCTANCE | 9.5 mH / PHASE |
PULL-Tawm TORQUE | Ntau tshaj | HOLDING TORQUE | Ntau tshaj |
MAX RESPONSE FREQUENCY | Ntau tshaj 1200 pps | MAX pib zaus | Ntau tshaj 900 pps |
INSULATION CLASS | CLASS E FOR COILS | Rwb thaiv tsev zog | 100 V AC rau ib thib ob |
KEV RUAJ NTSEG | 50MΩ DC 500V | Ua haujlwm kub | -0 - ntxiv rau 55 degree |
Output parameters deceleration lub cev muaj zog
Qauv: CHS-GM12-15BY Brushless Stepping Iav Tsav | |||||||||
Voltage: DC 12 0 V ( tsav IC: L6219 ) | |||||||||
TSIS MUAJ. ntawm theem | Bipolar 2-2 Phase | ||||||||
Piv txwv | 1:10 | 1:20 | 1:30 | 1:50 | 1:100 | 1:150 | 1:210 | 1:298 | 1:380 |
Qhov tseeb txo qhov piv txwv | 9.68 | 19.36 | 29.47 | 51.1 | 99.3 | 150.96 | 209.76 | 297.9 | 379.16 |
Kauj ruam kaum | 1. 86 degree | 0.93 degree | 0.61 degree | 0.35 degree | 0.18 degree | 0.12 degree | 0.086 degree | 0.06 degree | 0.047 degree |
1000 PPS ceev | 300 rpm | 200 rpm | 100 rpm | 60rpm ua | 30 rpm | 20rpm ua | 14rpm ua | 10rpm ua | 8rpm ua |
Phase Tam sim no | 150mA / Phase | ||||||||
Phase Resistance | 30±7 percent ohm / PHASE | ||||||||
Theem Inductance | 9.5 mH / PHASE | ||||||||
Tuav Torque (kgf.cm) | 0.14 | 0.28 | 0.42 | 0.70 | 1.40 | 2.10 | 2.90 | Qhov siab tshaj plaws tau tso cai | |
Rub tawm Torque (kgf.cm) | 0.04 | 0.08 | 0.12 | 0.20 | 0.40 | 0.60 | 0.84 | 1.20 | 1.50 |
Max pib zaus | Ntau tshaj 1200 pps | ||||||||
Max teb zaus | Ntau tshaj 900 pps | ||||||||

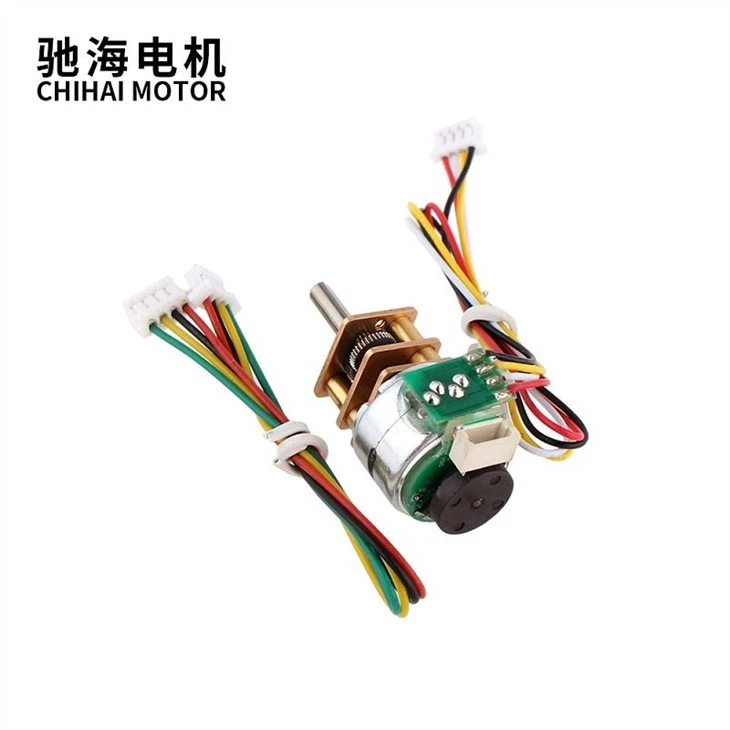

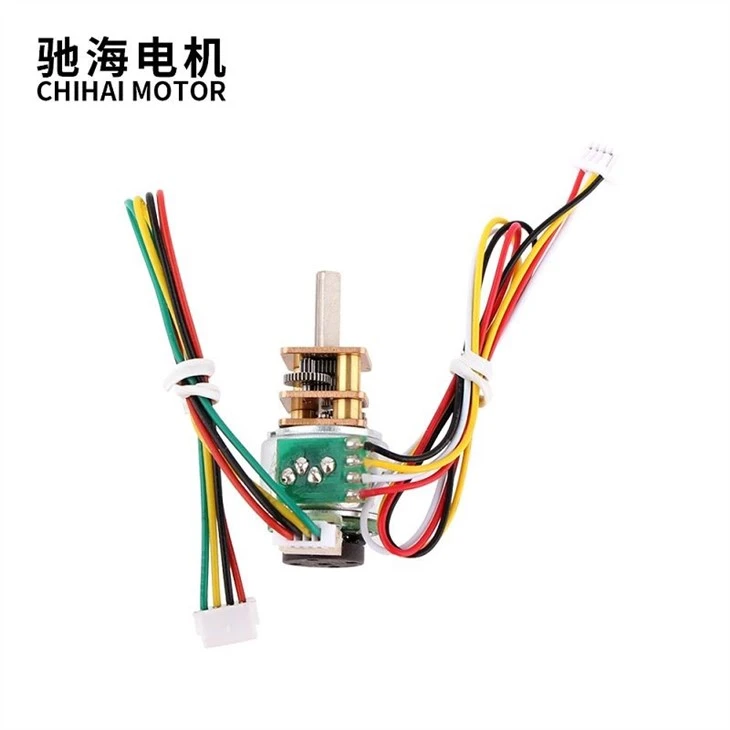

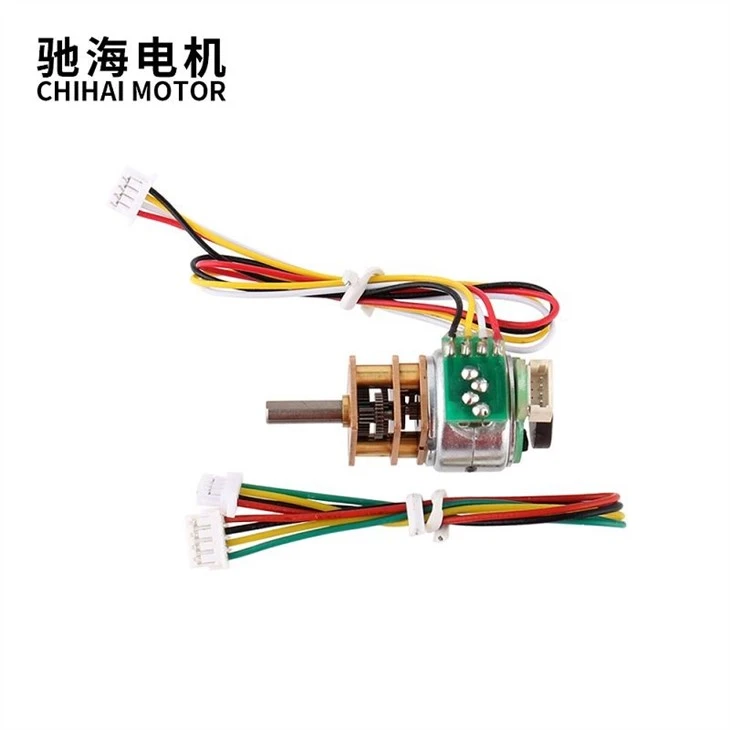

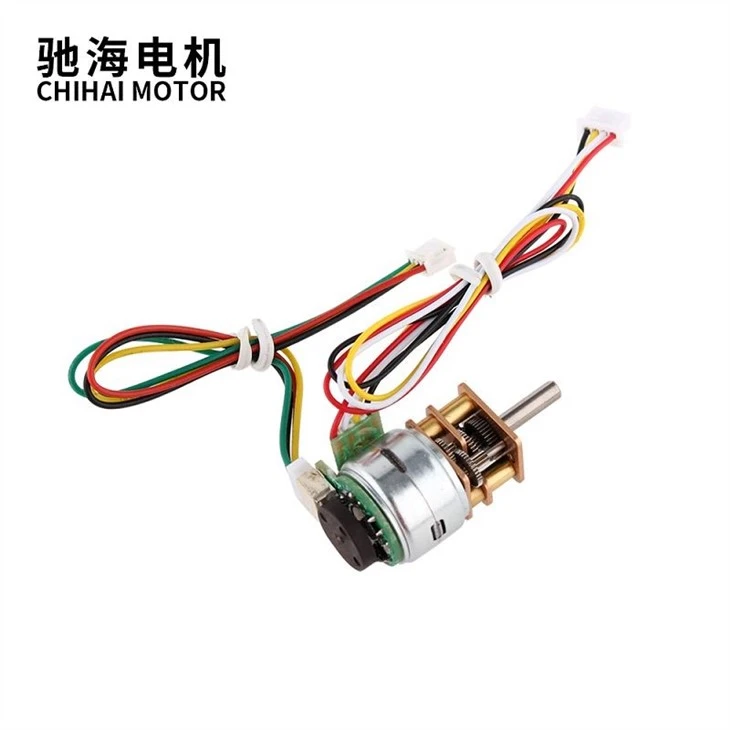

Cov khoom tso saib
Packing Kev xa khoom
Ntim:
Standard export thawv packing.
LUB SIJ HAWM:
3-20 hnub tom qab lees paub qhov kev txiav txim, hnub xa khoom nthuav dav yuav tsum tau txiav txim siab raws li
ntau lawm lub caij thiab txiav txim kom muaj nuj nqis.
CEEB TOOM:
Yog xav tau cov ntaub ntawv tshwj xeeb kev lis kev cai, thov hu rau peb ua ntej kom paub meej.
FAQ
Q: 1.Dab tsi ntawm cov motors koj tuaj yeem muab tau?
A: Txog tam sim no, Peb tsuas yog muab lub tshuab hluav taws xob micro thiab cov dc deceleration lub cev muaj zog, suav nrog cov hniav ncaj ncaj deceleration lub cev muaj zog, lub cev muaj zog deceleration, worm deceleration motor.Tam sim no, peb lub tuam txhab tsom rau kev tsim ntau hom motors nrog voltage ntawm 1VDC thiab 30VDC thiab lub cev muaj zog. txoj kab uas hla ntawm 8 mus rau 51mm.
q:2 ua. Koj puas tuaj yeem xa kuv daim ntawv teev nqi?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: Rau kev txiav txim, tus qauv coj lub sij hawm yog 3-25 hnub thiab lub sij hawm no yuav luv luv los yog ntev dua raws li txawv qauv, lub sij hawm thiab ntau npaum.
q:4 ua. Puas yog koj tuaj yeem tsim cov motors tshiab yog tias peb tuaj yeem muab cov nqi siv?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q: 5.Koj puas tuaj yeem xa kuv kuaj dawb?
Yog lawm, peb kuj tuaj yeem xa koj cov nqi kuaj rov qab thaum koj xaj khoom.
