775 DC Tsav Nrog Encoder

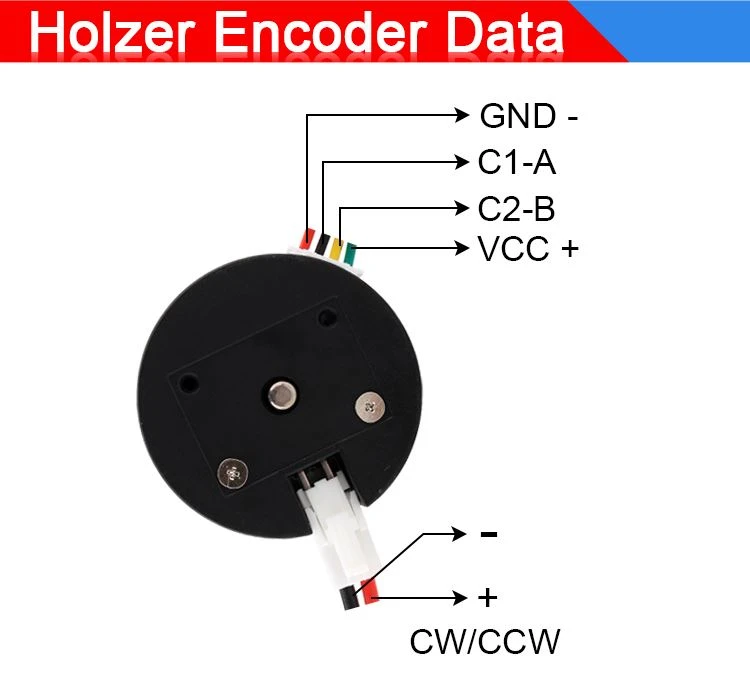

Qhov hlau thaiv qhov tseem ceeb: PH2.0-4PIN Txheem kev sib txuas lub davhlau ya nyob twg kab, xaim ntev 200 hli
Cov Lus Qhia: VH3.96-2PIN Cov txheej txheem xaim xov hluav taws xob ntev 200 hli
775 DC Lub Cev Muaj Zog nrog encoder
Khoom Piav Qhia
Yam khoom: | CHR-775S li hlau nplaum ruaj khov txhuam Holzer sib nqus encoder lub cev muaj zog |
lwm txoj kab uas hla ： | Φ42mm × 82.5mm |
Ncej ntev ： | 15mm Lub kauj |
Ncej Dianeter: | Φ5.0 hli |
Voltage: | DC 12-24V |
Nyhav ： | Txog 383g |
Thaiv specification ： | PH2.0-4PIN Tus qauv txuas lub davhlau ya nyob twg kab, xaim ntev 200 hli |
Specifications ： | VH3.96-2PIN Cov txheej txheem xov hlau qhov ntev 200 hli |
Cov duab ntxaws ntxaws
Khoom& cov lus qhia tshwj xeeb
Qauv ： CHR-775S TSAV TSHWJ XEEB TSHWJ XEEB | ||
DC24.0V MAX Power110W | ||
Siv voltage: | DC 12.0V | DC 24.0V |
Kev taw qhia ntawm kev sib hloov | CW / CCW | |
Tsis thauj khoom-nrawm (rpm) | 4100 | 8200 |
Tsis-thauj khoom tam sim no (A) | 0.45 A MAX | 0.55 A MAX |
Lub cev muaj zog (g.cm) | 400 | 800 |
Nyob ceev (rpm) | 3200 | 7000 |
Nyob tam sim no (A) | 2.5 A MAX | 3.5 A MAX |
Tub tes hauj lwm lub zog (kg.cm) | ≥2.2 | ≥5.0 |
Stall tam sim no (A) | ≤12.0 | ≤25.0 |
Pib qhov hluav taws xob | DC 3.0V | |
Khoom& tso saib
Packing& Tus me nyuam
POB:
Txheem export thawv ntim khoom.
TXHUA LUB SIJ HAWM:
3-20 hnub tom qab paub tseeb txog kev txiav txim, kev qhia meej txog hnub xa khoom yuav tsum txiav txim siab raws li
lub caij ua ntau lawm thiab kev txiav txim kom muaj nuj nqis.
XAIV:
Yog tias cov ntaub ntawv tshwj xeeb kev lis kev cai tau thov, thov hu rau peb ua ntej kom paub meej.
Cov FAQ
Q: 1.Qhov twg lub cev muaj zog koj tuaj yeem muab tau?
A: Txog rau tam sim no, Peb feem ntau muab micro lub cev muaj zog thiab cov koob ntawm dc deceleration lub cev muaj zog, suav nrog ncaj ncaj deceleration lub cev muaj zog, planetary deceleration tsav, lub cev muaj zog deceleration lub cev muaj zog.Thaum tam sim no, peb lub tuam txhab tsom rua kev tsim ntau yam ntawm cov motors nrog voltage ntawm 1VDC thiab 30VDC thiab lub cev muaj zog txoj kab uas hla ntawm 8 thiab 51 hli.
Q: 2. Koj puas tuaj yeem xa kuv daim ntawv qhia nqi?
A: Rau txhua yam ntawm peb lub zog, lawv tau kho kom haum raws li qhov sib txawv raws li lub neej, suab nrov, voltage, thiab cov nqaj thiab lwm yam. Tus nqi kuj sib txawv raws li qhov ntau xyoo. Yog li nws' s yeej nyuaj rau peb los muab cov npe teev nqi. Yog tias koj tuaj yeem qhia koj cov ncauj lus kom ntxaws thiab cov khoom lag luam txhua xyoo, peb' dhau los saib qhov kev pabcuam peb tuaj yeem muab tau.
Q: 3. Dab tsi' s lub sij hawm txhuas rau kev txiav txim ib txwm?
A: Rau cov xaj, lub sijhawm txhuas lub sijhawm yog 3-25 hnub thiab lub sijhawm no tuaj yeem luv dua lossis ntev dua raws li cov qauv sib txawv, sijhawm thiab ntau.
Q: 4. Nws puas tau rau koj kom txhim kho lub zog tshiab yog tias peb tuaj yeem muab cov nqi tsim tawm?
A:Yog lawm. Thov ua siab zoo qhia cov ncauj lus kom ntxaws ntxaws xws li kev ua tau zoo, qhov loj me, cov lus qhia txhua xyoo, cov nqi phiaj.
Q: 5.Hauv koj xa tuaj rau kuv kuaj dawb?
Yog lawm, peb kuj tuaj yeem xa koj cov nqi coj mus kuaj rov qab thaum koj tso qhov kev txiav txim.
Cim npe nrov: 775 dc lub cev muaj zog nrog encoder, Tuam Tshoj, tuam ntxhab, Hoobkas, lag luam, customized, lag luam wholesale, bulk, hauv Tshuag
